| Plug Building - Got Wood? Got Plug? |
 |
|
12-01-2009, 08:47 PM
|
#1
|
|
BigFish Bait Co.
Join Date: Apr 2003
Location: Hanover
Posts: 23,392
|
Nike Challenge Thread
Professor Moriarty was over the other day and we were talking Floyd Roman Nike's and he had with him an original and was kind enough to gift to me an unfinished body he copied from it. (Thanks Paul) I have always wanted to try some Nike's so now I got the bug! I turned a body yesterday and will progress to turn some more but I thought this might make a fun challenge? If anyone else might be interested in trying a Floyd Roman Nike copy over the winter months I thought all those who do could post their progress and finished results in this thread and it might be fun along the way for many of us and we might learn a thing or two and at the very least have fun watching each other go through the process! Anyone interested in joining in with me?  |
Almost time to get our fish on!!!
|
|
|
|
12-01-2009, 10:50 PM
|
#2
|
|
Registered User
Join Date: Jun 2008
Location: Lexington, MA
Posts: 1,940
|
I made one Nike last winter and plan to make a few more this winter. See green nike next to the 2 green dannies...
chris
|
 Blond Terror
|
|
|
|
|
12-02-2009, 06:49 AM
|
#3
|
|
Super Moderator
Join Date: Sep 2003
Location: Georgetown MA
Posts: 18,203
|
I'll give her a go this year...
|
"If you're arguing with an idiot, make sure he isn't doing the same thing."
|
|
|
|
|
12-02-2009, 12:12 PM
|
#4
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
here is a previous discussion on the larger Nike.
http://www.striped-bass.com/Stripert...kes-how-4.html
Larry is building the smaller one, which is my favorite. There are several sizes. I will take a pic and let you see one that is disassembled so you can see the weighting. |
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-02-2009, 12:44 PM
|
#5
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
her you go. Info on the smaller size
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-07-2009, 06:05 PM
|
#6
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Quote:
Originally Posted by ProfessorM
her you go. Info on the smaller size
|
Any other info on the larger Nike you may have??
Got this from the old thread:
The angle of the diving plane appears to be 35 degrees. The plane is 2 1/4 inches long and 1 inch wide. The protrusion on the front of the plug is obviously also 1" dia and projects forward about 1 1/8 inch.
The plug is 7 1/2 " long. It is 1 3/4 ' wide at it's widest, about 3 " from the nose. The last 1 1/4' of the plug is a straight barrell, 3/4 " in diameter.
Thanx...Lou
The tail hook is 2 1/4 from the rear, the front hook is 2 1/2 " from the nose and there is 2 5/8" between them.
Wanna do this one too!! |
 "The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
12-09-2009, 12:37 AM
|
#7
|
|
Registered User
Join Date: Mar 2004
Location: whaling city
Posts: 302
|
I used AYC this seemed to work on the ones I made.
|
|
|
|
|
|
|
12-16-2009, 12:58 PM
|
#8
|
|
Registered User
Join Date: Oct 2005
Location: RI
Posts: 383
|
Here is my attempt - Thanks for the diagram proff.
It works well - It is not as fat as I would like because I only had 1.5" stock but I still like it. I will definitely make more it was fun to build.
Red Cedar
|
|
|
|
|
|
|
12-02-2009, 12:46 PM
|
#9
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
here area few pics of the plug compared to the larger size one. The mack is Tagger the large olive is Tobias. The smaller ones I made and an original is on the bottom.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-02-2009, 12:53 PM
|
#10
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|

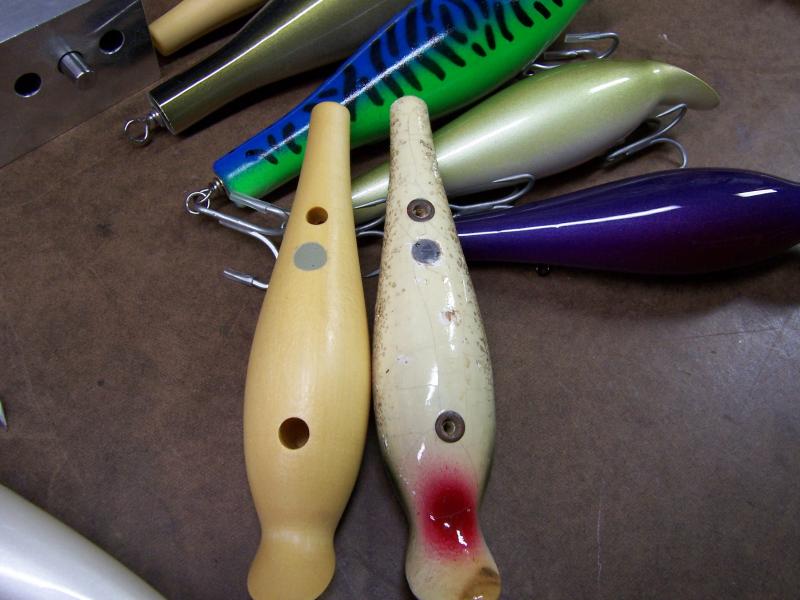

Here is the belly wgt location and the hook locations. You can get dim. from first post blueprint. Tail wgt is 5/16 dia by .600 long. I would drill the front belly hook hole for a large grommet as you will need a long swivel to reach the thru wire, thus it will be a bigger diam. swivel, as it is a pretty fat plug at that point. The original used screw eyes. Thru hole is drilled on center. I put a 1/4" c'bore on front angle to allow for a smoother nose grommet fit. I bandsaw angle and sand in the final dim. at 40 degree angle. This plug will swim pretty deep and with a very nice wiggle. It is a winner and I like this size better than the larger size but that is just my opinion.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-04-2009, 12:32 AM
|
#11
|
|
Registered User
Join Date: Mar 2004
Location: whaling city
Posts: 302
|
Nike print.doc
Here is a print of one that I got to work. No tail weight on this one.
|
|
|
|
|
|
|
12-04-2009, 07:36 PM
|
#12
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
This is great, I was looking for some info on the Nike a week or two ago. Gonna give it a shot this weekend.
What wood was used on the originals?
|
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
12-06-2009, 06:05 PM
|
#13
|
|
Registered User
Join Date: May 2005
Location: Mid Coastal CT
Posts: 2,006
|
Quote:
Originally Posted by jkswimmer
Attachment 36852
Here is a print of one that I got to work. No tail weight on this one.
|
what wood did you use? |
|
|
|
|
|
|
12-04-2009, 09:25 PM
|
#14
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
I just finished turning up 10. I have always used AYC and this time I made a couple out of AWC but I would think they used pine maybe but they are pretty old so I really don't know what was the predominate wood used back then. Probably what ever they could get their hands on. The one I have is fairly light so I say pine, maybe
In the one I documented I said smaller but it is still 6.5 inches long so not that small. Just smaller than the large one. Maybe Peter, VB, will post a picture of all the sizes as I know he has all the sizes in brand new condition in triplicate. ,,not fair. |
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-04-2009, 09:28 PM
|
#15
|
|
BigFish Bait Co.
Join Date: Apr 2003
Location: Hanover
Posts: 23,392
|
Is that maybe definite?  |
Almost time to get our fish on!!!
|
|
|
|
|
12-04-2009, 09:31 PM
|
#16
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
I like AYC. it works good
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-05-2009, 10:11 PM
|
#17
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Prof. , Thanks for posting the drawing and specs for the Nike, got one turned tonight and it looks pretty good, going with one hook though. It's all drilled and in the sealer now, will post some pics tomorrow.
|
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
12-16-2009, 03:43 PM
|
#18
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
nice job and I like the eyes
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-18-2009, 10:26 PM
|
#19
|
|
Registered User
Join Date: Nov 2006
Posts: 10
|
cool read
Cool read thanks guys.Nice to see different varieties of a classic.
Its a cool plug to build that gets you thinking alot,
well,me anyways.
I did some for a swap last winter & had fun doing them,they have a nice tight wiggle to them in a strong current,it seems that mine love current,the stronger the better,they also dart nice in the edy's.I also used ayc with the best results,.I tried wrc & wc with poor results.
|
|
|
|
|
|
|
12-19-2009, 08:52 AM
|
#20
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
very nice job, with a little different shape.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
10-10-2010, 11:32 AM
|
#21
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Here's Mine!!
The rumor of my demise has been greatly exaggerated!!
|
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
10-10-2010, 11:58 AM
|
#22
|
|
Registered User
Join Date: Oct 2000
Location: some where on the water
Posts: 2,313
|
WOW nice look'n plugs great info. im going to be a YEAR LATE on this one  BUT will TRY to hand carve a couple this month.
thanks for the info an pic's
GOOD LUCK GOOD PLUGGIN |
|
|
|
|
|
10-10-2010, 02:24 PM
|
#23
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
nice old post and real nice plugs. Great job.
Bigfish painted a few for me that I turned last winter. I'll have to dig them up and post a picture as the paint came out real nice.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
10-10-2010, 03:56 PM
|
#24
|
|
Oblivious // Grunt, Grunt Master
Join Date: Nov 2005
Location: over the hill
Posts: 6,682
|
High class stuff, Sarge. Very impressive.
|
|
|
|
|
|
|
10-10-2010, 05:14 PM
|
#25
|
|
Registered User
Join Date: Feb 2010
Location: Brea, Ca
Posts: 62
|
i might give these a try...i just need lathe. belt sander might work.
|
|
|
|
|
|
|
10-21-2010, 11:33 AM
|
#26
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
A few More
Two more, plus some others I finished
|
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
10-21-2010, 11:55 AM
|
#27
|
|
Registered User
Join Date: May 2003
Location: Easton, MA
Posts: 5,737
|
Lookin' good! Nice paint work on them!
|
Conservatism is not about leaving people behind. Conservatism is about empowering people to catch up, to give them tools at their disposal that make it possible for them to access all the hope, all the promise, all the opportunity that America offers. - Marco Rubio
|
|
|
|
|
10-22-2010, 07:27 PM
|
#28
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Tested today!
Took the Nike's out today to test, Jr's swim great as do the big ones, but they need just a little tug to get them to bite in.
I'm happy, make some more after fishing season (if it get's here)
|
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
08-16-2011, 01:44 PM
|
#29
|
|
Registered User
Join Date: Feb 2008
Location: RI
Posts: 57
|
I just tried making a few some roll out and some dig nice I cant figure out what I did on the rollers. I will have to play some more.
|
|
|
|
|
|
|
08-16-2011, 02:47 PM
|
#30
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Quote:
Originally Posted by Smulax
I just tried making a few some roll out and some dig nice I cant figure out what I did on the rollers. I will have to play some more.
|
Let's see some pic's of them, also were did you weight them? |
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
|
