Atom Jr. inspired by Capesams

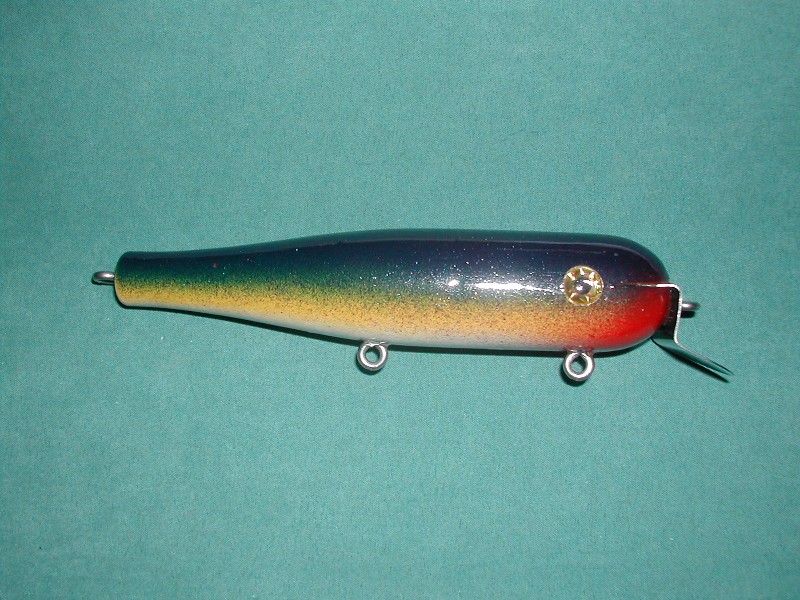

Loved the series of atoms, etc. that CS did. Got to reseal this guy. One of the ones that ended up with a tacky finish coat from this weekend. It's about 6" long with an NJT #2 Danny lip on it. Always wanted to try this paint scheme :-)
|
|
|
|
|
|
11-09-2004, 09:51 AM
|
#2
|
|
Boston Anglah
Join Date: Sep 2004
Location: Sitting on top of the world with my legs hangin free
Posts: 3,322
|
She's a beauty...I like the color scheme, nice work
|
Used hard and put away dirty....
|
|
|
|
|
11-09-2004, 09:58 AM
|
#3
|
|
Registered User
Join Date: Apr 2001
Location: Uh, in a spot....
Posts: 5,451
|
Nice! That color scheme can be found on some Gibbs oldies. You may want to try to space the screw eyes more evenly. The middle one might be better a 1/2 or so more to the tail. Keeps the hooks from hookin up with each other. That plug would make a killer skin plug! Keep up the good work!  |
Why even try.........
|
|
|
|
|
11-09-2004, 12:18 PM
|
#4
|
|
Really Old & Really Grumpy
Join Date: Jun 2002
Location: not a clue
Posts: 4,860
|
 nice to see my children havin offspring...on the next one either place the front hook just abit behind the eye and as flap say's the back hook back a tad...or just one hook about a inch back of the eye..  your doing a fine job on those  |
BOAT fish do count.
|
|
|
|
|
11-09-2004, 02:18 PM
|
#5
|
|
Registered User
Join Date: Apr 2001
Location: Uh, in a spot....
Posts: 5,451
|
Counter sinking the screw eye works well too, just so about 1/3 of the eye is counter sunk. A well placed screw eye works just as well as thru wiring. When I use them I offset the angle rather than just go straight in so when the force of the pull is forward and the weight of the fish is creating resistance the eye, because of that angle is made more secure, really snugs in. The threads on a screw made out od stainless steel are fine so any help you can give it to gain purchase in the wood under stress helps. Also a dab of epoxy is a little insurance as well. Keep havin fun and experimenting! |
Why even try.........
|
|
|
|
|
11-09-2004, 06:06 PM
|
#6
|
|
Registered User
Join Date: Feb 2003
Location: Here and There Seasonally
Posts: 5,985
|
Just when I think that I have enough designs to steal.... Thats a beauty!
|
|
|
|
|
|
|
11-09-2004, 06:54 PM
|
#7
|
|
viva the plug-o-lution
Join Date: May 2002
Location: notsob
Posts: 3,476
|
i bet they swim AWSOME with the screw eyes , not loosing wood to the through wire hole.
awsome stuff steelhead |
live to fish. fish to live. rod tips high.
|
|
|
|
|
11-09-2004, 07:11 PM
|
#8
|
|
Registered User
Join Date: Apr 2002
Posts: 5,945
|
Shape and Colr, Right On
listen to the master for the hook placement
Keep them coming, you can't beat the classics! |
|
|
|
|
|
|
11-09-2004, 09:12 PM
|
#9
|
|
Hydro Orientated Lures
Join Date: Oct 2002
Location: Brockton,Ma
Posts: 8,484
|
that looks freakin yummy .. bet it swims great too ...nice pluggage
|
|
|
|
|
|
|
11-10-2004, 07:16 PM
|
#10
|
|
Registered User
Join Date: Oct 2003
Location: North shore
Posts: 1,247
|
I've got to re-epoxy this guy, so I'm going to shift the screw eyes abck a bit before I re-coat. Thanks for all the input!!!! Working on a few more like it. More "old" paint schemes...
|
|
|
|
|
|
|
11-10-2004, 07:37 PM
|
#11
|
|
All up in the Interweb!
Join Date: Mar 2002
Location: In the dog house.
Posts: 5,205
|
i am not sure if you really need to move the eyes. that set up is very similar to the 6" goo goo. make one with the shifted eyes and test them against each other.
|
Co-Host of The Surfcast Podcast
"Out there in the surf is where it's at, that's where the line gets drawn in the sand between those who talk fishing and those who live it."
- a wise man.
One good fish, a sharpie does not make...
Certified rock hopping billy goat.
|
|
|
|
|
11-10-2004, 08:32 PM
|
#12
|
|
Registered User
Join Date: Jul 2003
Location: NJ
Posts: 869
|
Nice work Steelhead.That is a nice paint scheme.
u might also want to experiment with a Lefty #2 on that body style . Just a thought. Im working on 2 larger Danny lips, heavier gauge stainless.
|
|
|
|
|
|
|
11-10-2004, 08:50 PM
|
#13
|
|
Registered User
Join Date: Oct 2003
Location: North shore
Posts: 1,247
|
TL, That's what I decided to do this evening as I was standing in front of the lathe... Tinman, I'm working on an order for more lips. I'll look at the Lefty #2 lip. Are the bigger lips more like what you see on the bigger Atoms, etc.? They seem to be broader, with a lip that's not so deep, without the flair of the big pikie lips.
|
|
|
|
|
|
|
