| Plug Building - Got Wood? Got Plug? |
 |
12-30-2005, 07:54 PM
|
#1
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
Flipper

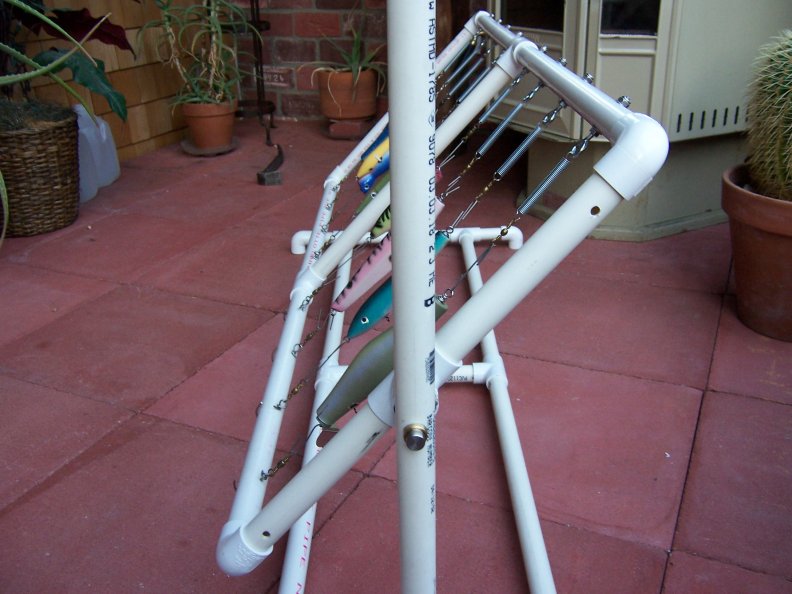

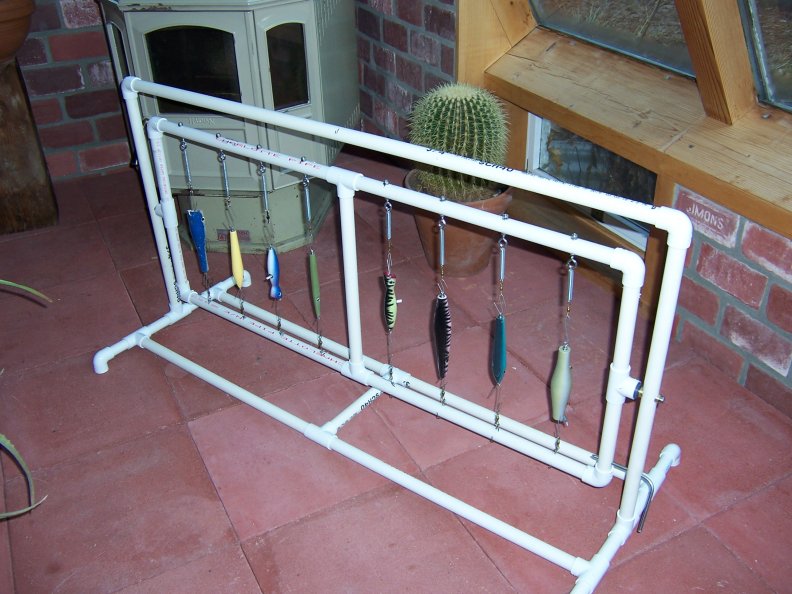

My take on the plug flipper Tagger built. PVC is easy to work with. Could even hook up a motor to it if you wanted. Just makes it easier to spin the thing 180 than to flip by hand. The lazy man's way I guess.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
12-30-2005, 07:57 PM
|
#2
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
Couple more. Next thing to tackle is a spinner. Cover both methods of epoxying that way. Paul
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-30-2005, 07:59 PM
|
#3
|
|
Registered User
Join Date: Oct 2002
Location: Pacifica, California
Posts: 357
|
I have to say some of the drying racks I have see lately are Hangin cool.
That's wicked pissah to you easters  The things we think.
Great work and who ever thought a Cactus would survive an New England winter.
Profess Those window sills are sweet. |
Its only art if it don't catch fish!
|
|
|
|
|
12-30-2005, 08:24 PM
|
#4
|
|
Registered User
Join Date: Jan 2003
Location: Hard aground
Posts: 1,362
|
Nice job Ahmet  |
|
|
|
|
|
|
12-30-2005, 09:38 PM
|
#5
|
|
Registered Papa
Join Date: Mar 2005
Location: "Da Cape"
Posts: 368
|
What no metal next thing you know you'll build the spinner out of wood., nice rack.
|
|
|
|
|
|
|
12-30-2005, 10:13 PM
|
#6
|
|
Registered Grandpa
Join Date: Nov 2003
Location: east coast
Posts: 8,592
|
PM, your killin me with that grey/green danny.
cool rack.  |
" Choose Life "
|
|
|
|
|
12-31-2005, 05:03 AM
|
#7
|
|
Hydro Orientated Lures
Join Date: Oct 2002
Location: Brockton,Ma
Posts: 8,484
|
U king of the flippers,, yours is way better.. no more dropping sticky plugs on the floor .. I've been wrapping a little piece of foil around barrel swivels to protect them from epoxy . Had a couple freeze up after numerous plugs ..
|
Belcher Goonfoock (retired)
(dob 4-21-07)
|
|
|
|
|
12-31-2005, 06:59 AM
|
#8
|
|
........
Join Date: Apr 2002
Posts: 22,805
|
PM
you are indeed the mad scientist...
nice job man...  |
|
|
|
|
|
|
12-31-2005, 11:52 AM
|
#9
|
|
On the Hook
Join Date: Dec 2001
Location: Sandy Hook, NJ
Posts: 81
|
Brilliant !
|
"I just wanta play everyday despite small nagging injuries,
and go home to a woman who appreciates how full of crap I truly am"..... Crash Davis
|
|
|
|
|
12-31-2005, 02:26 PM
|
#10
|
|
Certified Mass-hole
Join Date: Jun 2003
Location: Jackson, NJ but born and raised in Massachusetts.
Posts: 1,223
|
WHAT! ? no timer and indexing drive
|
|
|
|
|
|
|
12-31-2005, 06:07 PM
|
#11
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
Quote:
|
Originally Posted by Charleston
WHAT! ? no timer and indexing drive
|
I thought of it but didn't want to seem like I was off my rocker. Probably a short pause every 45 degrees |
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-31-2005, 07:03 PM
|
#12
|
|
........
Join Date: Apr 2002
Posts: 22,805
|
the rack looks mint paul
and when i blew up the pic's i was noticing the hardware you
used to go thru the two main up-right poles on the frame...
what is that? comprised of...something you made at the shop or
something that you can buy at the hardware...and if so perhaps
you could describe it....the rest is rather self explanatory...
the only thing i would've /might have done differently was to
use the newer vice grip with the self adjusting setting on the jaws.
|
|
|
|
|
|
|
12-31-2005, 09:41 PM
|
#13
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|

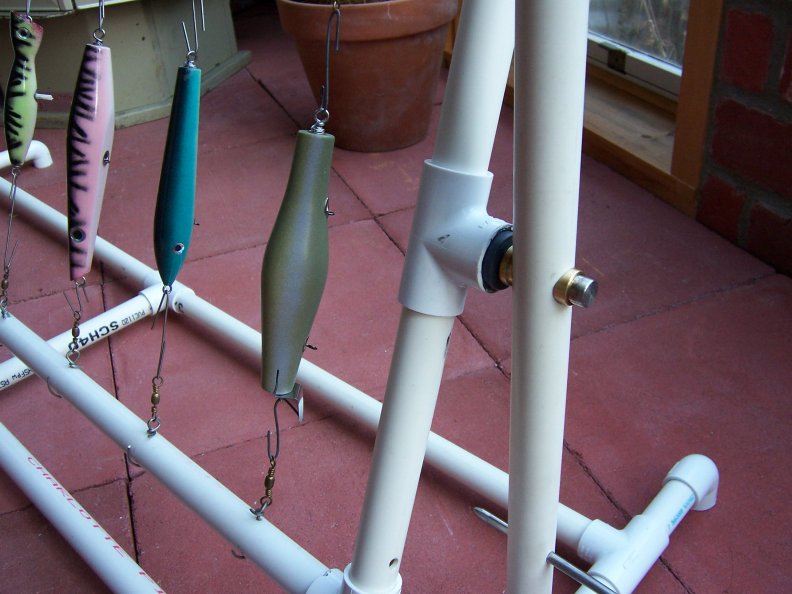

Raven it is a sleeve I made of brass. I took a piece of pvc stock and turned it down and drilled a hole in it to accept a .500 dia. ss pin. press fit. I then took a pvc 3 way connector and cemented the the plug of pvc into it. When dry I pressed the pin into the plug. I then drilled out the upright and then turned a bushing made of brass and pressed it into the upright. Then inserted the pin, slip fit, into the upright. Both sides typical. As far as the vise grip I think you are talking about the other holder post. The vise grip jaw was a bitch to drill. I had to use a carbide drill bit, hardened stuff. I was going to weld it but figured if it didn't work I would still have a vise grip to use.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
12-31-2005, 09:53 PM
|
#14
|
|
........
Join Date: Apr 2002
Posts: 22,805
|
yep i thought so...PM
that you made those parts....sure looked like it to me..
and yeah silly me, i guess i'm feeling my bacardi gold rum
and was commenting on the plug holder set up while talking about the flipper...My bad lol...
anyways thats why i asked about the hardware. um ..... could you build me an interstellar telephone
like on ET because i need to call home.....   |
|
|
|
|
|
|
12-31-2005, 10:33 PM
|
#15
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
LOL
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
