the jig's up

[capesams]

here's a jig that will do both needle's and swimmer's..for drilling hook holes and the lead hole dead center down the middle.

the sst lip on the left side will hold any swimmer and the screw eye just above that does needles.

the plywood cross bar on the right side has a u shape slot to accept the tail end of the plug and slides back an forth for any leight plug.

[BigFish]

Thanks for sharing Capesams!

[MAC]

Nice, can you make me one? I'll trade you a plug.

[capesams]

ifin ya just gotta have,can't live without it,kill for,,wetting ya pants,drooling,got the shakes,o my god....ya I guess.

[MAC]

Originally posted by capesams
ifin ya just gotta have,can't live without it,kill for,,wetting ya pants,drooling,got the shakes,o my god....ya I guess.

I just picked up a 1/4 sheet of brich ply. Going out to the garage to whip one up. good idea combining the 2 onto 1 jig. Thanks for the pic.

[capesams]

copy away....that's why I posted it....hope it helps anyone who need's a good working jig..............it's a shame not to share .

[justplugit]

[MAC]

How did I do

[capesams]

girl's in sweater's the tighter the better an all the men yell hay.


I get a cut in any jig's u sell

[MAC]

Naw I made 1 that is enough. Should have changed the blade on the table saw first though. Thanks for the tip Steve. Sharing is caring

[MAC]

I made another slide just for this and raised the center up 1/2"

[bassmaster]

nice, mine sucks so i tossed it a while back
thanks......

[Fishpart]

Thanks for Sharing

[bassmaster]

jig

[NIB]

I made several like that.my buddy used to have em for every type plug he made used to make em outof any little pice of wood he had layin around.I recently made one for the eyesholes with a old drill bit I would stick into the front hook hole.from the side made several holes in hieght for differnt thicknesses in the plugs.

[doyle007]

Capesams & MAC, one question: what is the purpose of the eye screw that is just above the metal lip? I can see how the metal lip holds the plug steady when drilling, but I can't figure out the eye screw.

Thanks.

[NIB]

The scew is for needles

[doyle007]

Needles. That makes total sense. Sometimes my brain just doesn't work well after a long run. Thanks NIB.

[spence]

Do you guys drill the eyes on needles before or after the belly holes? I've been doing them before, drilling a small hole all the way through...then stick a pin through the hold which rests on the jig to keep the belly pointing up. How do ya do it with this jig?

-spence

[capesams]

1.lip slot
2. through hole
3.lead an belly holes
4.eye's

[MAC]

I haven't used mine yet. Next week it will be run through its paces.

[bassmaster]

i just made one and I used a heavy moors lip to make it easy

[capesams]

GOOD>..I'll give your's to Karl then...I knew u could do it.

[crashfromamesbury]

cs.. i'd love one of those.. just working on my redneck wind chimes at the moment.....

[capesams]

[Nebe]

I made a jig for this tonight and it was wayyy easier. Granted, you have to leave the square stock nubs on the end of the plug, but all it is, is a board with a strip of wood on one side. Clamp it to the drillpress and all of your holes will be inline. Just slide the plug down the strip of wood. This will work for big plugs, small plugs, fancy plugs, and in my case, ugly plugs

[NIB]

Originally posted by Eben
I made a jig for this tonight and it was wayyy easier. Granted, you have to leave the square stock nubs on the end of the plug, but all it is, is a board with a strip of wood on one side. Clamp it to the drillpress and all of your holes will be inline. Just slide the plug down the strip of wood. This will work for big plugs, small plugs, fancy plugs, and in my case, ugly plugs

Make all ur blanks the same size put a stop in front an just flip it around to do the front an back holes.a stop on the ban saw works the same way for the lip cuts.Depth an height.I do it like that keepin the ends on i drill the hook holes eyesholes an lead hole.then i cut the lip slot.I don't make 20 at a time.more like 2 or 3 then i get bored an wanna make something else but a quick jig keeps things nice.A neat jig for the lathe just clamp a plastic profile piece to the tool rest an a small c clamp on my pointy thing.not elaborate but gets the job done.for a stop on the tailweight holes I use a scrap piece of the blank up on the drill bit.i used to do everything by eye.I would mark the center holes with a 3/4" piece of lath lay it on the 1 1/2 stock on the edge an it will be pretty close to center i would adjust right or left if i had to.I make alot of quick jigs at work u be suprised what u can do with a set of clamps.

[capesams]

YA welcome.....wood u beleive I hung with u just long enough to miss bm across the street

[Karl F]

Well, ya know what they say....

timing is everything...

also....

no good deed goes unpunished

leave it to U which applies

[Diggin Jiggin]

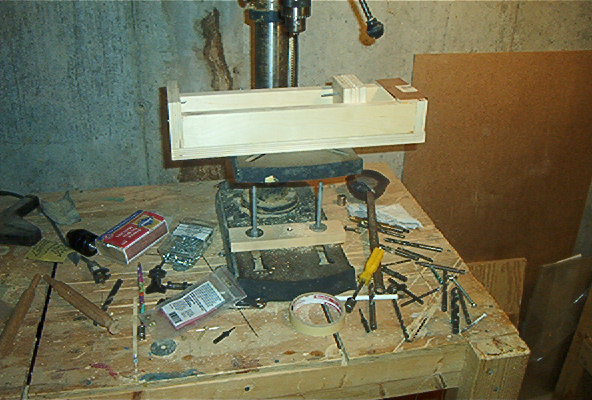

I put together a couple of jigs for the drill press based on the one capesam posted, and one forma while back about using dowel centers to hold the plug for thru drilling. The jigs work great, what a time saver.

With this one setup I can drill all of my holes Weights, hooks, eyes and even the thru holes on short plugs. I've got to finish long thru holes by hand (its only a 10" press) , but I'm working on a jig for that too, Maybe tomorrow.

Thanks for all the help. If I can figure out how to attach a picture I'll show you what I did...
