01-21-2011, 09:21 AM
|
#1
|
|
Seldom Seen
Join Date: May 2001
Posts: 10,543
|
Offset- How to?
I watched PNG demonstrate this at Plugfest in 2006 or 2007. But I just can't recall the step to make the offset, after getting the round shaping done.....  (Of course I haven't turned since then either) Couldn't find anything in search mode... Any pics or video?
Offsets seem to have dropped off the radar in recent years. A fad, or just another option? |
“Americans have the right and advantage of being armed, unlike the people of other countries, whose leaders are afraid to trust them with arms.” – James Madison.
|
|
|
|
01-21-2011, 10:06 AM
|
#2
|
|
Oblivious // Grunt, Grunt Master
Join Date: Nov 2005
Location: over the hill
Posts: 6,682
|
Quote:
Originally Posted by nightfighter
I watched PNG demonstrate this at Plugfest in 2006 or 2007. But I just can't recall the step to make the offset, after getting the round shaping done..... (Of course I haven't turned since then either) Couldn't find anything in search mode... Any pics or video?
Offsets seem to have dropped off the radar in recent years. A fad, or just another option? |
Difficult. Turn the nose and tail on center (otherwise it is easy to cut through them as you do an off center spin). Move your centers to one side, using a template turn one side, move your centers to the other side and turn the other side. Guys who are really good (PNG and John come to mind) may turn off several other centers (I think one of John's plugs used 5 center positions and started with a block about 3" wide). It helps a ton to use Steb centers both on the drive and tail stock. Wear a face shield and don't let anyone else stand nearby.
Although it can be done, I don't advise trying this freehand. I did and the results were exciting to say the least |
|
|
|
|
|
|
01-23-2011, 10:16 AM
|
#3
|
|
Registered User
Join Date: Nov 2004
Location: plymouth,ma
Posts: 1,142
|

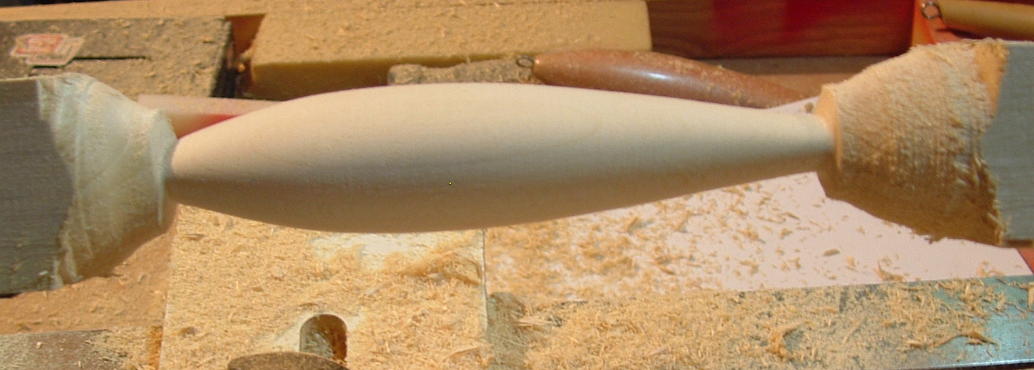

I messed around with off center swimmers a few years ago.
Like George said, turn the basic shape on center but leave a lot of extra material around the nose and tail as it will wobble a lot when its mounted off center. Then when you are done with the off center turning, you can mount it back on center and clean up the nose and tail.
I don't use a duplicator so I just did mine free hand. I ended up slowing down the lathe quite a bit, the off center vibration makes the whole lathe 'walk' on the table so I ended up putting mine on a router matt and that worked pretty well. Doing it free hand it's tough to get the 2 opposite sides perfectly symetrical. Easiest way to get them close was to just make the same number of passes with the chisel on each off center side.
|
|
|
|
|
|
|
01-23-2011, 03:41 PM
|
#4
|
|
Registered User
Join Date: Jul 2004
Location: Buxton, Maine
Posts: 1,727
|

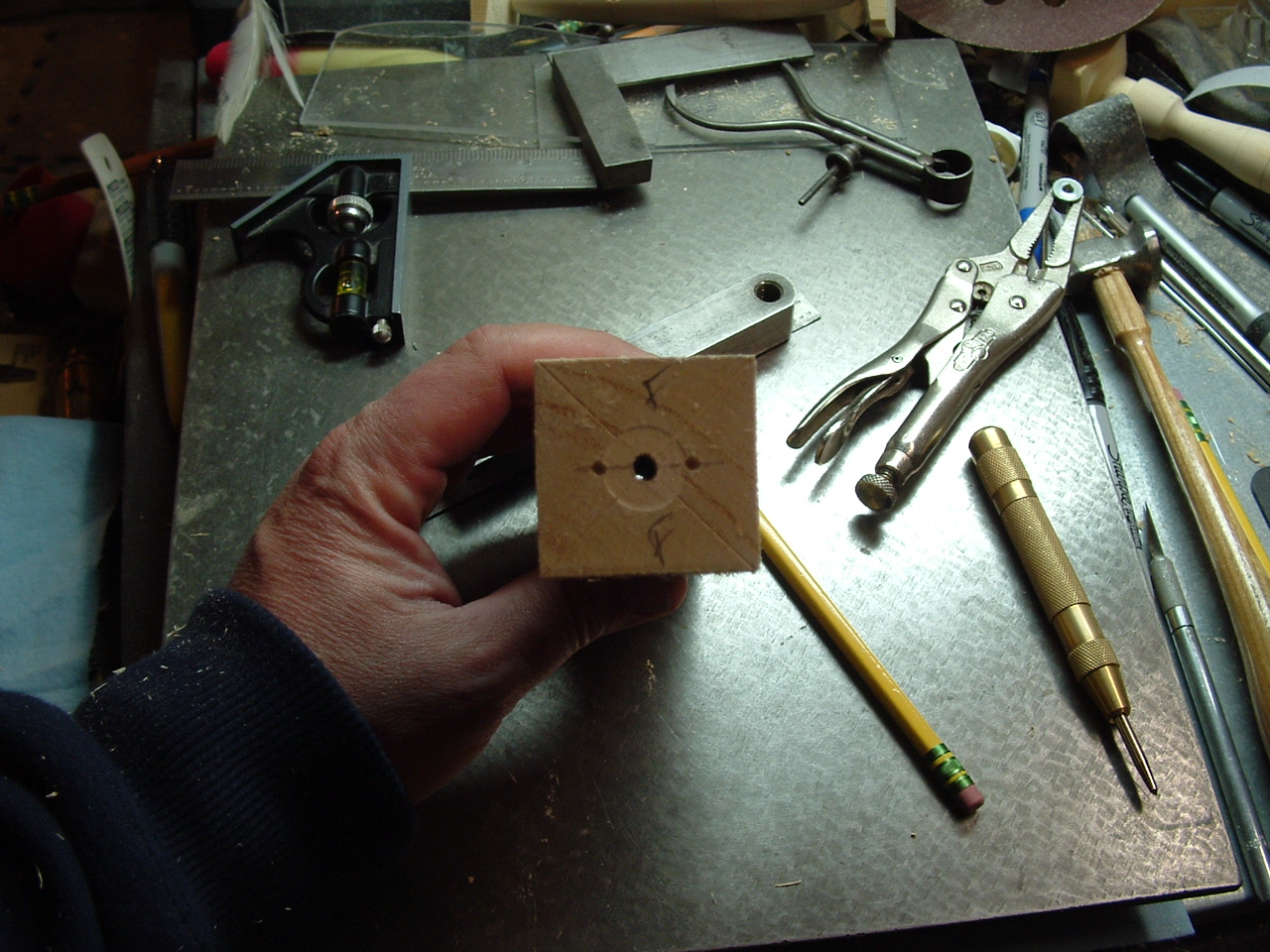

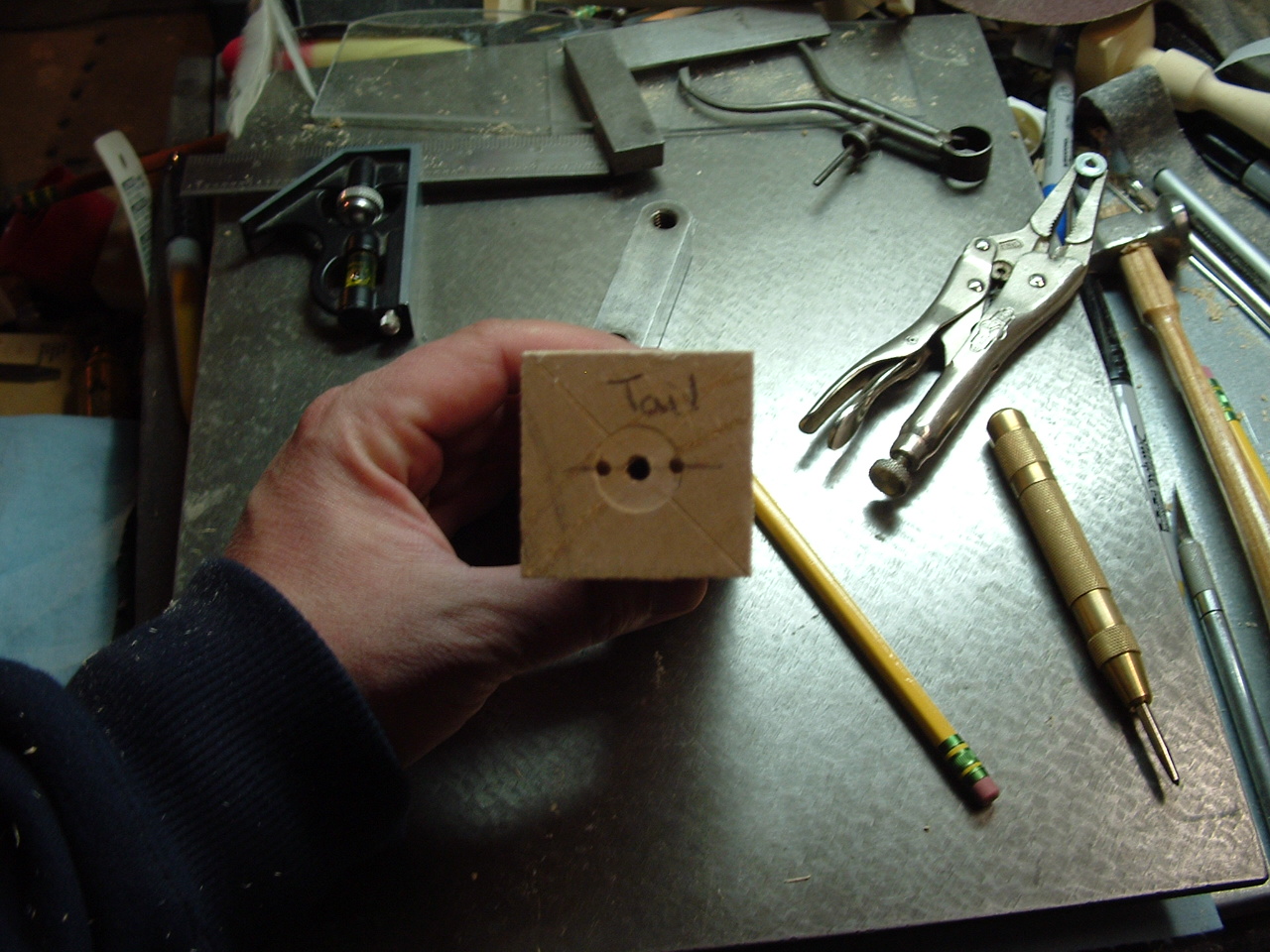

I've played with the off center stuff a bit and a variable speed lathe sure helps out. As far as lay out goes it's a lot like laying out a but wrap on a custom rod. take the axis you want the plug to run and mark both ends at equal increments then use a scribe to push a hole in the wood that you can put the steb center into. I took some scrap 4x4 and cut it to size ist and just practiced to see what I'd end up with. I'm no where as good as PNG but its fun and not all that hard to do. You do blow up some wood on the learning curve. Ron
|
|
|
|
|
|
|
01-23-2011, 07:42 PM
|
#5
|
|
Registered User
Join Date: Jan 2003
Location: Hard aground
Posts: 1,362
|
http://www.striped-bass.com/Stripert...rs-chosen.html
post 55.
I tried to upload pics but Johns stupid site  wont let me do it again said I have already uploaded them and the link is above. I was able to post up one new pic I will try some others
|
Plugs Rule
|
|
|
|
|
01-23-2011, 07:43 PM
|
#6
|
|
Certifiable Intertidal Anguiologist
Join Date: Feb 2000
Location: Somewhere between OOB & west of Watch Hill
Posts: 35,270
|
Quote:
Originally Posted by PNG
|
Email 'em to me
johnR@striped-bass.com |
~Fix the Bait~ ~Pogies Forever~
Striped Bass Fishing - All Stripers
Kobayashi Maru Election - there is no way to win.
Apocalypse is Coming:
|
|
|
|
|
01-23-2011, 07:47 PM
|
#7
|
|
Registered User
Join Date: Jan 2003
Location: Hard aground
Posts: 1,362
|
..
|
Plugs Rule
|
|
|
|
|
01-23-2011, 08:20 PM
|
#8
|
|
Registered User
Join Date: Jan 2003
Location: Hard aground
Posts: 1,362
|

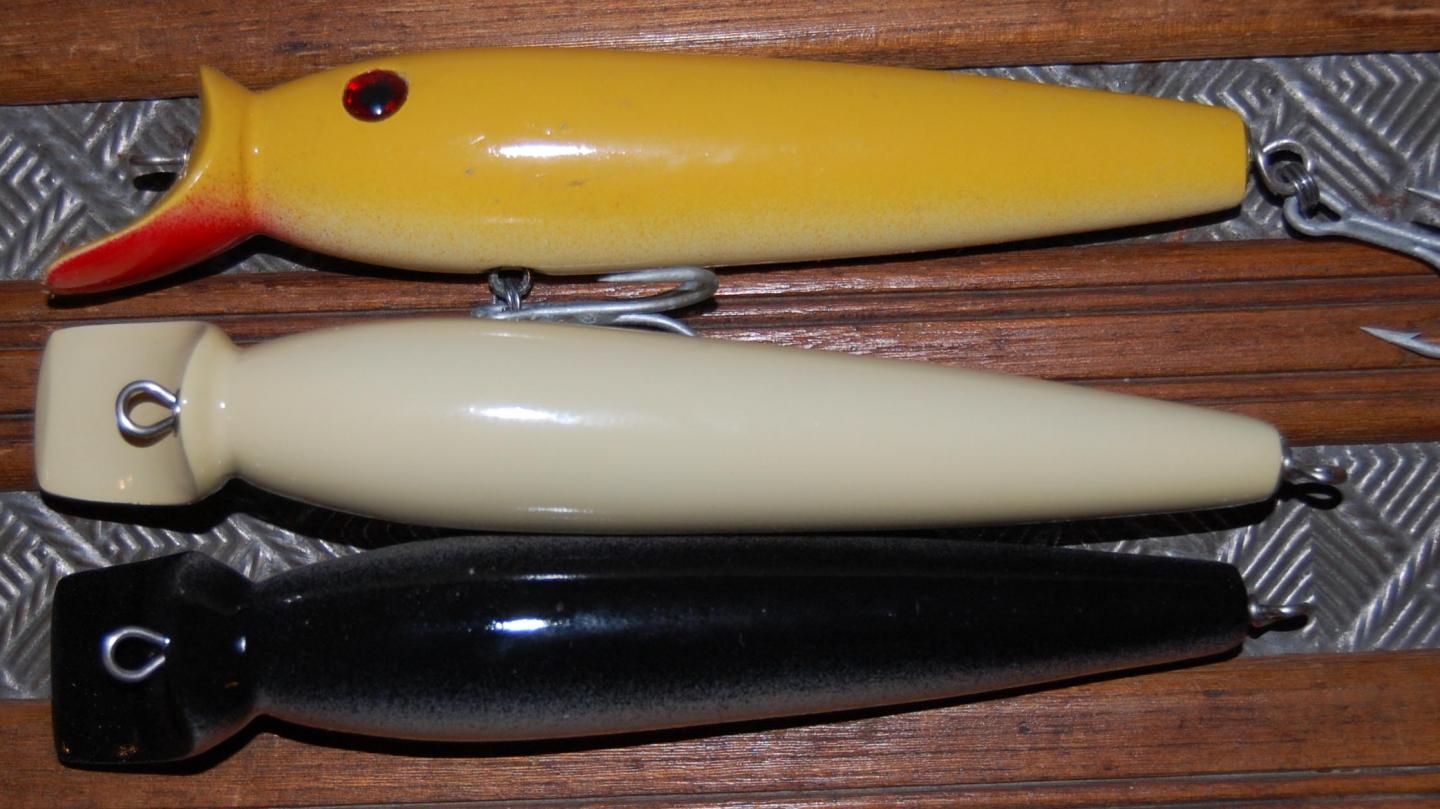

some bottlebombers from last season. they need two body hooks. didnt get to try them much...this year  they are a royal pia. |
Plugs Rule
|
|
|
|
|
01-23-2011, 08:22 PM
|
#9
|
|
Registered User
Join Date: Jan 2003
Location: Hard aground
Posts: 1,362
|
Quote:
Originally Posted by JohnR
|
used the prenamed renamed pics...thanks though  |
Plugs Rule
|
|
|
|
|
01-23-2011, 08:32 PM
|
#10
|
|
Seldom Seen
Join Date: May 2001
Posts: 10,543
|
Thanks, Chris. Gonna give it a try....George had me sceered. The basic turning is coming back,,,,slowly. |
“Americans have the right and advantage of being armed, unlike the people of other countries, whose leaders are afraid to trust them with arms.” – James Madison.
|
|
|
|
|
01-23-2011, 09:20 PM
|
#11
|
|
Registered User
Join Date: Jan 2010
Location: S. Easton
Posts: 1,676
|
Quote:
Originally Posted by PNG
|
Do you need the fancy spur driver to make this happen? |
|
|
|
|
|
|
01-23-2011, 09:22 PM
|
#12
|
|
Registered User
Join Date: Jan 2003
Location: Hard aground
Posts: 1,362
|
Quote:
Originally Posted by O.D. Mike
Do you need the fancy spur driver to make this happen?
|
yes. pennstate has them for short $ compared to sorbey and they are better. |
Plugs Rule
|
|
|
|
|
01-23-2011, 09:23 PM
|
#13
|
|
Registered User
Join Date: Jan 2010
Location: S. Easton
Posts: 1,676
|
Thanks buddy!
|
|
|
|
|
|
|
