Lido Flaptail

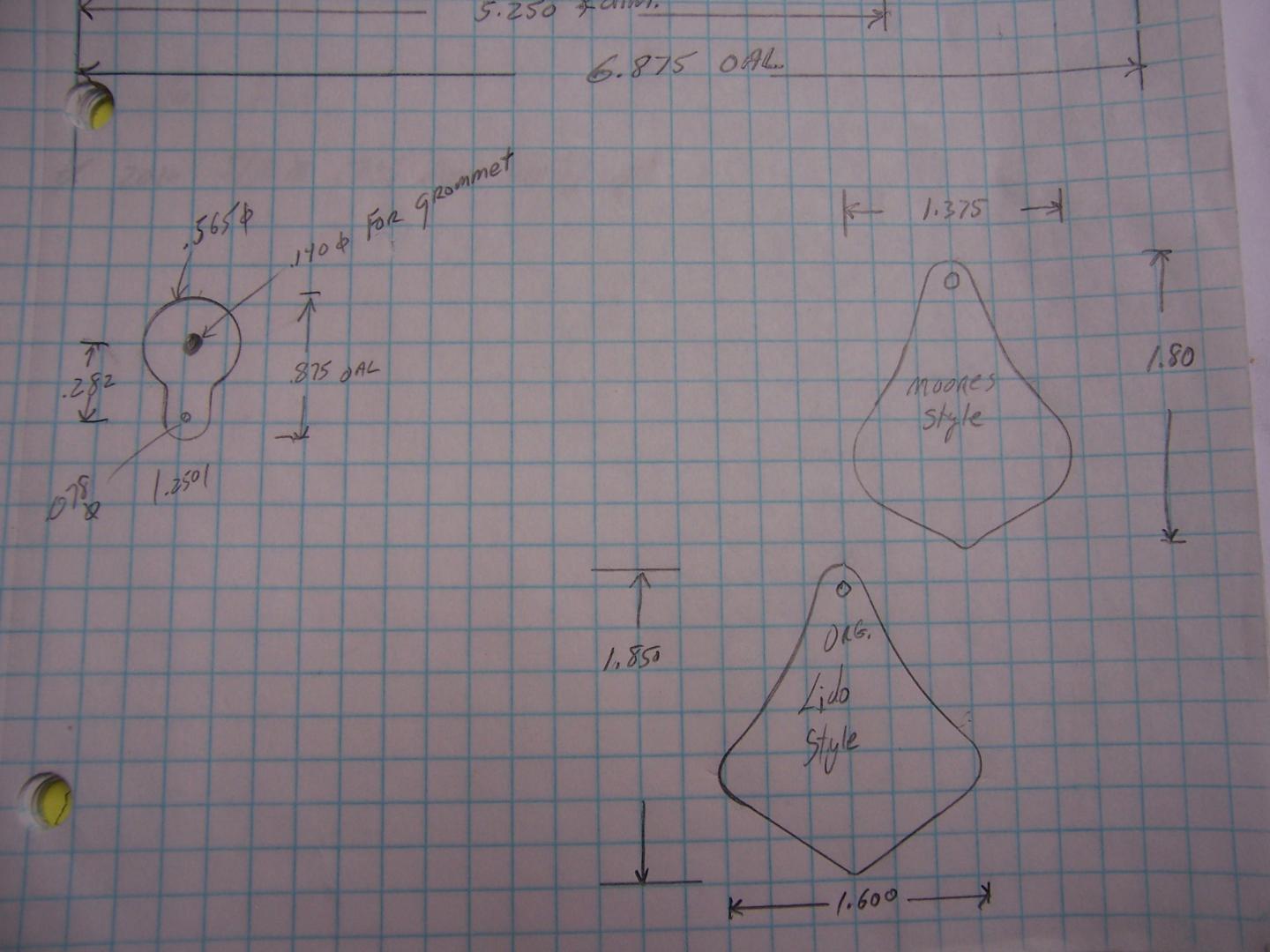

Here is all I know for anyone who wants to make some

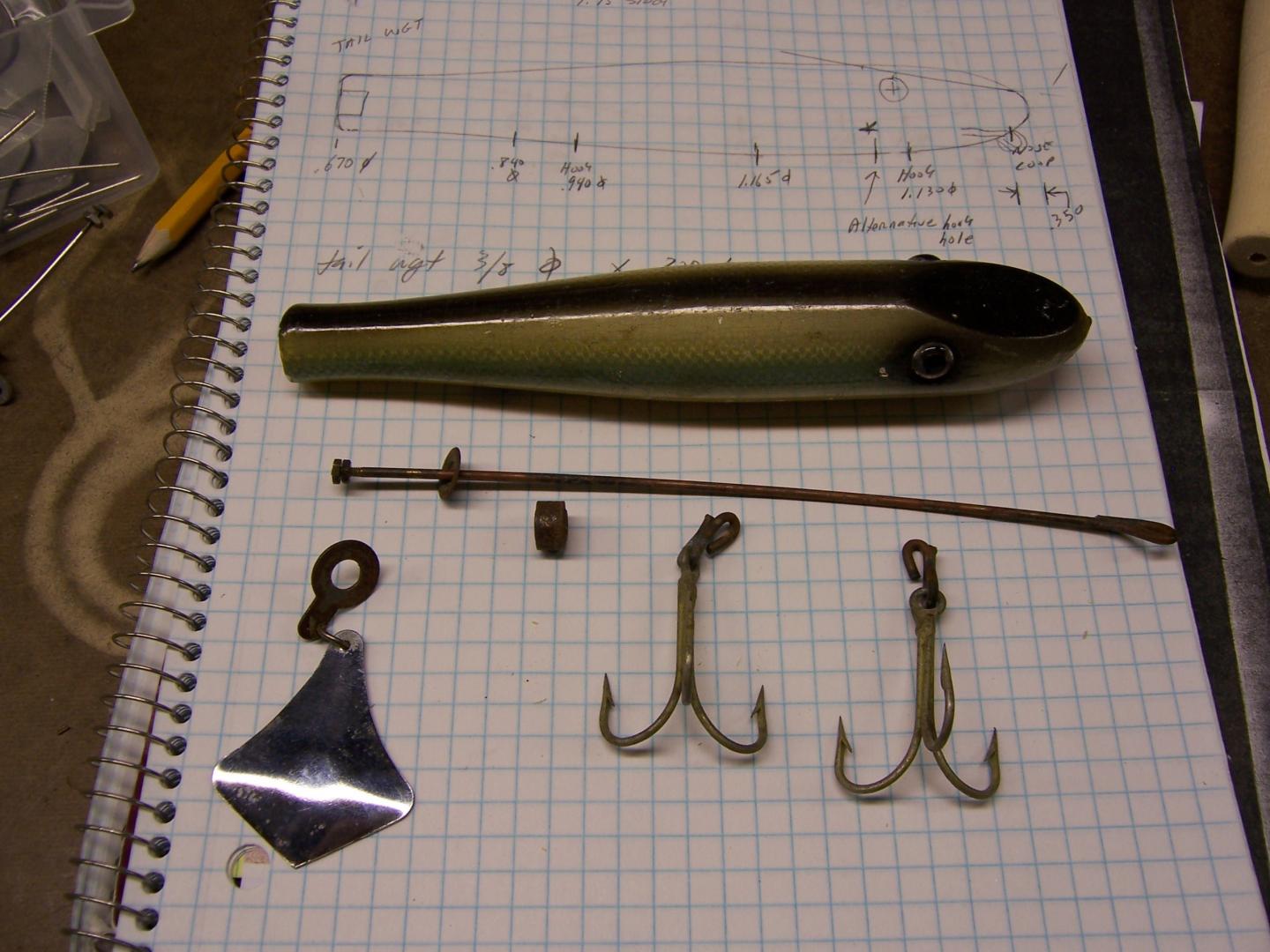

You can see the original which is all brass hangers and thru wire which is threaded in rear with 2 nuts. I did one that way out of stainless, which was a bear. Then I figured out a way to wrap the tail and also you can see another way Capesams showed me using stainless bike spoke which has the nut type screw in the back. I did have to make the little thingy that the flap tail attaches too to make it hang down lower but that piece makes a world of difference in the plug than using a swivel like most modern day guys use. It had a very small tail wgt. in the rear which believe it or not was just plain steel, not lead.
Attached Thumbnails
Click image for larger version

Name:	100_0855.jpg
Views:	442
Size:	165.8 KB
ID:	42781   Click image for larger version

Name:	100_0859.jpg
Views:	395
Size:	171.0 KB
ID:	42782   Click image for larger version

Name:	100_0863.jpg
Views:	367
Size:	177.9 KB
ID:	42783
