| Plug Building - Got Wood? Got Plug? |
 |
|
01-08-2010, 12:34 PM
|
#1
|
|
Registered User
Join Date: Jan 2007
Location: Reading Mass/Newburyport/merrimack river
Posts: 3,748
|
darters...

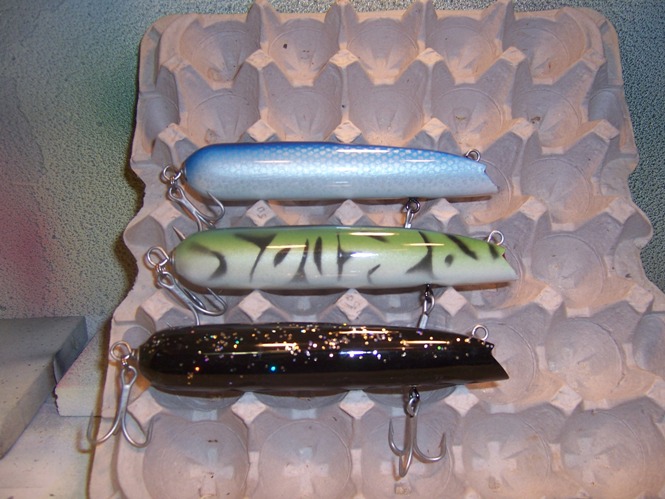

I finished and tested a few darters last week, I've still got a bunch to epoxy... the butt end is a little fatter on these than I usualy do... out of 18, all but 3 acted like I wanted... the three "dogs" were clearly over weighted, which surprised me because I weigh each slug....
The bodies are birch and weigh 2.5 ounces @6.5" long
I've since drilled out the lead, filled the hole in the putty, dabbed on a little paint and covered the patch with 5 minute epoxy.. if the ice clears, i'll take them for a swim, they float well in the bucket now.... BTW... any one scouring the PI beach may find a pair of black 6.5" 2.5 ounce darters... the ice flows ate!
|
A good run is better than a bad stand!
|
|
|
|
01-08-2010, 01:24 PM
|
#2
|
|
Registered User
Join Date: Dec 2004
Location: North Fork
Posts: 2,260
|
|
Originally Posted by Flaptail
"Throw plugs like we do that will cause them to suffer humility. Pogies make any fisherman look good when bass are around. Bait is easy."
|
|
|
|
|
01-08-2010, 01:25 PM
|
#3
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
nice joe. i am still working on mine. I just finished the first fixture for the bottom part lip. I am doing it on the table saw after much consideration. Numby got me thinking and i used his idea. I used a few ideas from your fixture, as far as mounting it to the fixture, that you showed me and so far it is very solid and it works great. Next on to the fixture for the angle, slope. That i will do in the band saw much like your fixture. I just pray they swim.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 01:45 PM
|
#4
|
|
Registered User
Join Date: Sep 2005
Location: Cumberland, RI
Posts: 2,264
|
Damn you eat a lot of eggs! nice plugs.
|
Good judgement comes from experience, and experience comes from bad judgement -- Keith Benning
|
|
|
|
|
01-08-2010, 02:03 PM
|
#5
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
I suspect he got those from work as we use them for smaller machine part storage between operations. We got 1000's of them.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 02:05 PM
|
#6
|
|
Registered User
Join Date: Jan 2007
Location: Reading Mass/Newburyport/merrimack river
Posts: 3,748
|
Quote:
Originally Posted by ProfessorM
nice joe. i am still working on mine. I just finished the first fixture for the bottom part lip. I am doing it on the table saw after much consideration. Numby got me thinking and i used his idea. I used a few ideas from your fixture, as far as mounting it to the fixture, that you showed me and so far it is very solid and it works great. Next on to the fixture for the angle, slope. That i will do in the band saw much like your fixture. I just pray they swim.
|
I turned 12 of those small Gibbs ones we worked on last night, 6 out of maple, 6 out of birch, the maple are .25 ounces or so heavier... I rigged half of each body and floated them in a bucket.. I like the balance,unfortunatly I have no where to swim them unless I take them to the beach.... and that is a hard way to check the action this time of year...I'm still considering moving the hook foreward... but the man that originaly made that plug forgot more than I will ever know...
yours will swim... the biggest thing with the angles is how much of each angle you want to over lap the prior one... 1/8" change higher or lower on the slope changes the depth they want to swim and the amount they dart.. as long as the balance is good you'll be fine..the rest is symantrics.. |
A good run is better than a bad stand!
|
|
|
|
|
01-08-2010, 02:06 PM
|
#7
|
|
Registered User
Join Date: Jan 2007
Location: Reading Mass/Newburyport/merrimack river
Posts: 3,748
|
Quote:
Originally Posted by ProfessorM
I suspect he got those from work as we use them for smaller machine part storage between operations. We got 1000's of them.
|
Bijngo... we have Bingo! |
A good run is better than a bad stand!
|
|
|
|
|
01-08-2010, 02:12 PM
|
#8
|
|
Registered User
Join Date: Dec 2004
Location: North Fork
Posts: 2,260
|
Quote:
Originally Posted by Rockfish9
Bijngo... we have Bingo!
|
LOL have stacks of them here also. |
Originally Posted by Flaptail
"Throw plugs like we do that will cause them to suffer humility. Pogies make any fisherman look good when bass are around. Bait is easy."
|
|
|
|
|
01-08-2010, 03:41 PM
|
#9
|
|
Registered User
Join Date: Nov 2004
Location: plymouth,ma
Posts: 1,142
|
Nice stuff Joe. I think solid black darters were my #1 plug last year.
|
|
|
|
|
|
|
01-08-2010, 09:00 PM
|
#10
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|

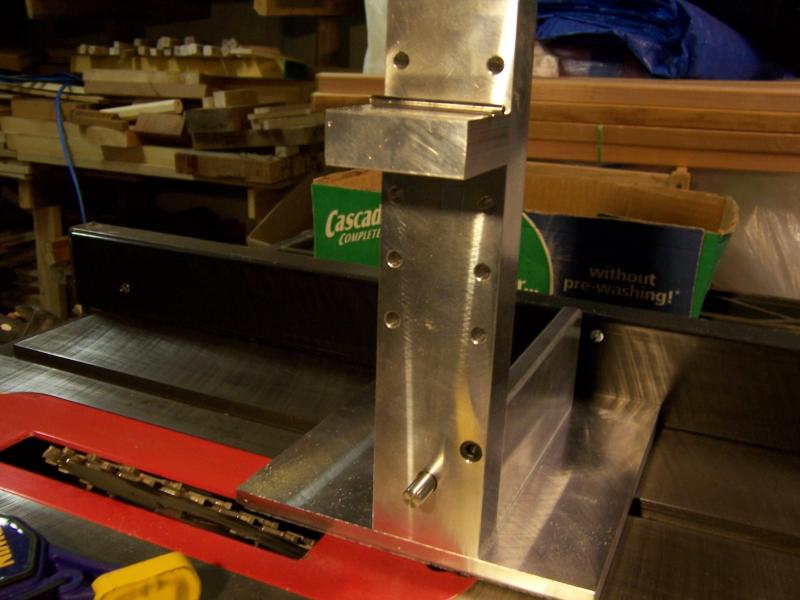

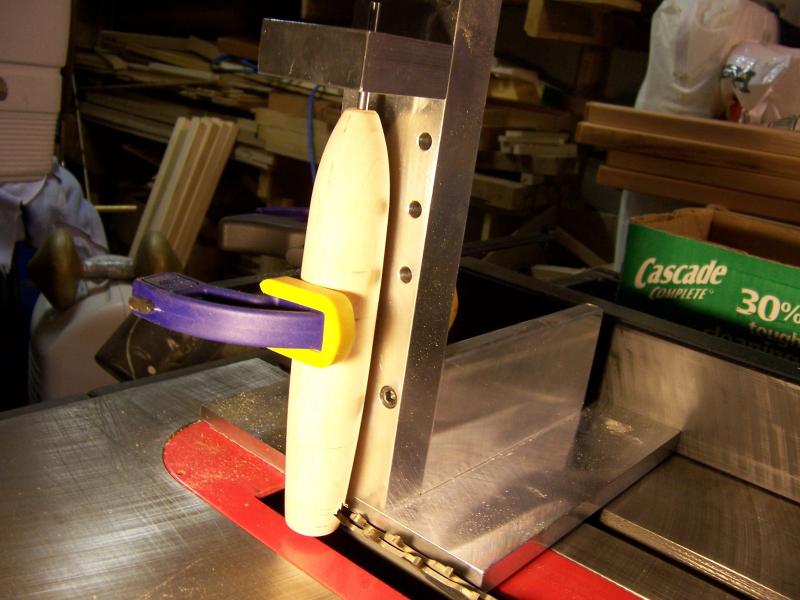

ok darter fixture time. first part anyway. Here is what I came up with after George told me to try it on the table saw. I am standing it on its nose. Belly hole is positioning it on a pin and there is a pin going into the tail thru hole, thanks Joe for that idea. You can't move it a smidgen, rock solid and the clamp is almost unneeded. It has multi adjustments for different lengths and I will just make more blocks on rear end to accommodate different dia. darters if I ever need too.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 09:04 PM
|
#11
|
|
Registered User
Join Date: Dec 2004
Location: North Fork
Posts: 2,260
|
Paul if you use a wide dado blade you get both cuts in one pass.  Very similar to one i made. |
Originally Posted by Flaptail
"Throw plugs like we do that will cause them to suffer humility. Pogies make any fisherman look good when bass are around. Bait is easy."
|
|
|
|
|
01-08-2010, 09:06 PM
|
#12
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|

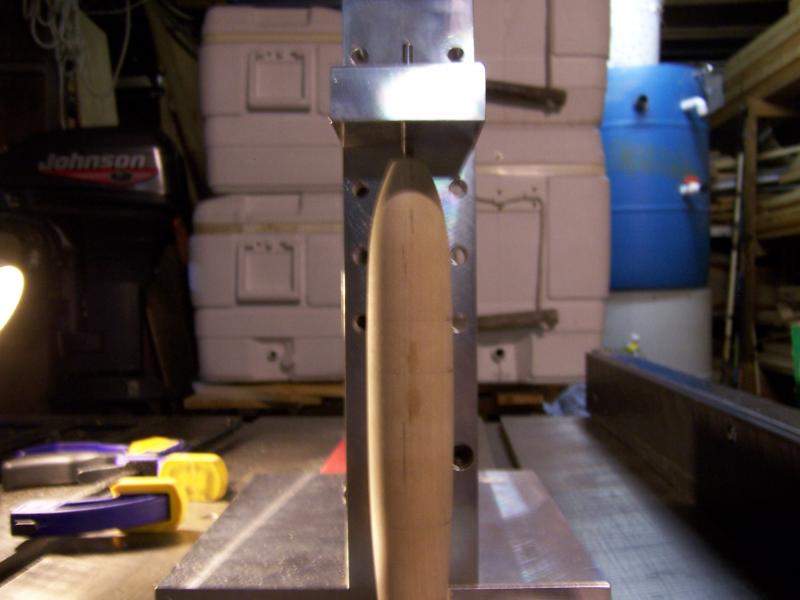

fixture slides along against the fence to a final setting and they repeat great. Slap it in and run it thru, done. You can adjust the angle if need be if you are inclined to experiment. I am challenged enough so far with this one. I am using a dado blade as my regular blade is just too thin to give me the best width, plus the blade I first tried was so friggin dull. I have not used my table saw in probably 7 years so I can't remember what the hell I was sawing but it ruined the blade. The dado cuts the birch like butter.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 09:12 PM
|
#13
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|

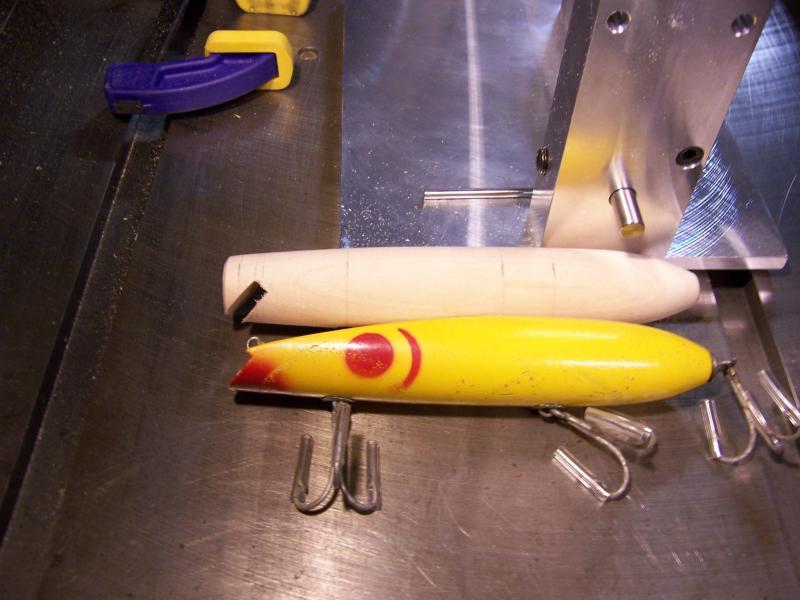

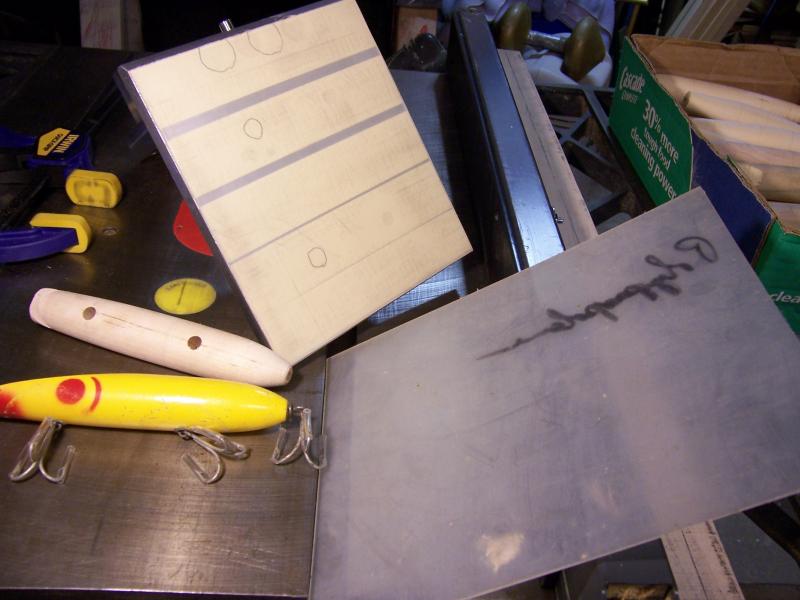

Here is the darter I am trying . A nice Musso that George lent me. The one problem I did have was the aluminum plate kept galling a little bit on the cast iron table as you slid it along into the blade. I stoned the table like 3 times and broke every sharp edge, still was hard to push. I took it back to work and fly cut the fixture, still not smooth enough so i took a thin piece of polypropylene and took some 2 sided tape and adhered it to the bottom . Works like a charm, smooth as silk. Got the idea from my duplicator as I had to do that to the cutter sled. That all she wrote . Next week i work on the band saw fixture for the slope, angle.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 09:14 PM
|
#14
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
Quote:
Originally Posted by eastendlu
Paul if you use a wide dado blade you get both cuts in one pass. Very similar to one i made. |
I am using a dado in one pass. It is adjusted to the thinnest setting which is about 1/4". |
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 09:17 PM
|
#15
|
|
Super Moderator
Join Date: Aug 2000
Location: Middleboro MA
Posts: 17,125
|
holy crap Paul, you need to learn to make those jigs with wood  unreal
I have plenty of scraps
unless those are scraps also
Lu is right about using a dado, but in your case your jig is vertical not at a 45 so I think you'd need a different throatplate.
that's how I plan to do mine when I get to it.
Joe, nice looking darters  |
|
|
|
|
|
|
01-08-2010, 09:20 PM
|
#16
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
scraps B., easier for me to do out of alum than wood. I am posting so others can get the idea and use wood instead of what I used. The same thing can be made of wood and work just as good, it is just not my preferred material. I am using a dado. am I missing something?
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 09:22 PM
|
#17
|
|
Super Moderator
Join Date: Aug 2000
Location: Middleboro MA
Posts: 17,125
|
Quote:
Originally Posted by ProfessorM
fixture slides along against the fence to a final setting and they repeat great. Slap it in and run it thru, done. You can adjust the angle if need be if you are inclined to experiment. I am challenged enough so far with this one. I am using a dado blade as my regular blade is just too thin to give me the best width, plus the blade I first tried was so friggin dull. I have not used my table saw in probably 7 years so I can't remember what the hell I was sawing but it ruined the blade. The dado cuts the birch like butter.
|
do yourself a big favor and attach a 3/4" x 3/8" piece to go in the miter slot so you don't have any issues holding it against the fence. I know it's alluminum but it also is very close to that blade. make that thing into a sled like I did with that allum. I got from you for my big sleds. |
|
|
|
|
|
|
01-08-2010, 09:24 PM
|
#18
|
|
Super Moderator
Join Date: Aug 2000
Location: Middleboro MA
Posts: 17,125
|
ya, a wider dado set will cut the complete nose cut, get it? put 2-3 blades together
|
|
|
|
|
|
|
01-08-2010, 09:35 PM
|
#19
|
|
Oblivious // Grunt, Grunt Master
Join Date: Nov 2005
Location: over the hill
Posts: 6,682
|
I've been developing a method using heat to adjust the weight of my val oil/MS sealed bodies. Still need to get some bugs out.  |
|
|
|
|
|
|
01-08-2010, 09:38 PM
|
#20
|
|
Oblivious // Grunt, Grunt Master
Join Date: Nov 2005
Location: over the hill
Posts: 6,682
|
Got 1/2 an oz off, but I find my equipment needs some work.
|
|
|
|
|
|
|
01-08-2010, 09:39 PM
|
#21
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
you talking the slope? the bottom lip part is complete. the excess will come off in the band saw when the slope is put on, No?
WHat you don't like that .010 clearance I got on the fixture to the blade  . I got to relieve a little more of the fixture. I guess i could use the miter slot but that would take away my adjustment for other's that I might do. No? |
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 09:39 PM
|
#22
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|

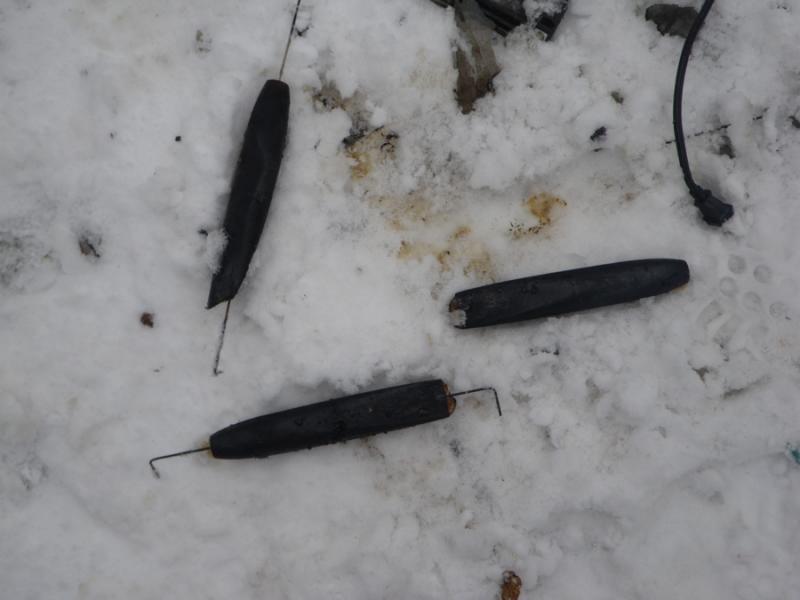

LOL George I think you over cooked them. Did you fall asleep at the switch? Smoore's
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 09:43 PM
|
#23
|
|
Great White Scup Hunter
Join Date: Nov 2006
Location: In the Corner...
Posts: 2,251
|
Paul you build some AMAZING jigs
|
|
|
|
|
|
|
01-08-2010, 09:46 PM
|
#24
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
You should see my Irish jig.
Nah it just looks fancy because it is shinny and over engineered. You can get same results with precision cut wood. I just got the ways and means so i use shinny stuff. thanks
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2010, 09:47 PM
|
#25
|
|
Super Moderator
Join Date: Aug 2000
Location: Middleboro MA
Posts: 17,125
|
are those Cubans George?
Paul, I see, we'll talk about this later on
|
|
|
|
|
|
|
01-08-2010, 09:53 PM
|
#26
|
|
Registered User
Join Date: Feb 2003
Location: Here and There Seasonally
Posts: 5,985
|
When I grow up I want to be a machinist or cabinet maker..
George, those flames are phenomenal, they look almost real....
|
|
|
|
|
|
|
01-08-2010, 09:59 PM
|
#27
|
|
Hunting for a 40
Join Date: Oct 2007
Location: RI
Posts: 615
|
Nice as always Joe.
|
|
|
|
|
|
|
01-09-2010, 12:08 AM
|
#28
|
|
Registered User
Join Date: Oct 2006
Location: Pembroke,MA
Posts: 784
|
Nice darters Joe.
Paul that jig is sweet, I want one.
George best flame paintjob I've ever seen. |
|
|
|
|
|
|
01-09-2010, 06:40 AM
|
#29
|
|
Very Grumpy bay man
Join Date: Nov 2003
Location: Rhode Island
Posts: 10,824
|
Professor M, your name suits you. Beautiful jig.
|
No boat, back in the suds.
|
|
|
|
01-09-2010, 06:54 AM
|
#30
|
|
Canceled
Join Date: Jun 2003
Location: vt
Posts: 13,425
|
Quote:
Originally Posted by ProfessorM
you talking the slope? the bottom lip part is complete. the excess will come off in the band saw when the slope is put on, No?
WHat you don't like that .010 clearance I got on the fixture to the blade . I got to relieve a little more of the fixture. I guess i could use the miter slot but that would take away my adjustment for other's that I might do. No? |
The wooden tenoning jig I made has slots for adjusting the alignment of the jig to the blade. Slots in the jig, studs stick up from the runner that fits in the miter slot, thumbscrews for adjustment |
Frasier: Niles, I’ve just had the most marvelous idea for a website! People will post their opinions, cheeky bon mots, and insights, and others will reply in kind!
Niles: You have met “people”, haven’t you?
Lets Go Darwin
|
|
|
|
|
|
