12-16-2004, 11:36 PM
|
#31
|
|
Registered User
Join Date: Nov 2004
Location: plymouth,ma
Posts: 1,142
|
Cool the picture worked
Ok, on the table of the bench press is the jig like capesam showed. I need to find a thin piece of stainless to hold the swimmers in place of the thin copper thats on there, but for now thats good enough.

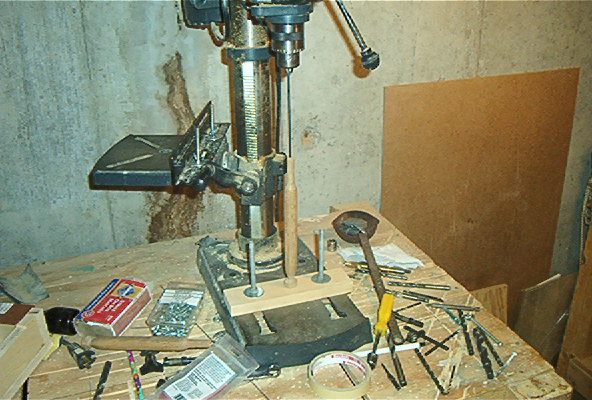

On the base of the drill press I mounted a piece of wood that has a dowel center that I use for thru drilling. On my press you can turn the table so its clear out of the way... |
|
|
|
|
|
12-16-2004, 11:42 PM
|
#32
|
|
Registered User
Join Date: Nov 2004
Location: plymouth,ma
Posts: 1,142
|
I've also done a few things with the jig base don capesams specifically to fit my drill.
In the bottom of the jig there is another dowel center that I can use for thru drilling short plugs.
One end of the jig has a 1/8 wide screw, and the block on the other end which fits tight, has a 1/8 in nail. I am thru drilling with a 1/8 bit so they fit snug.

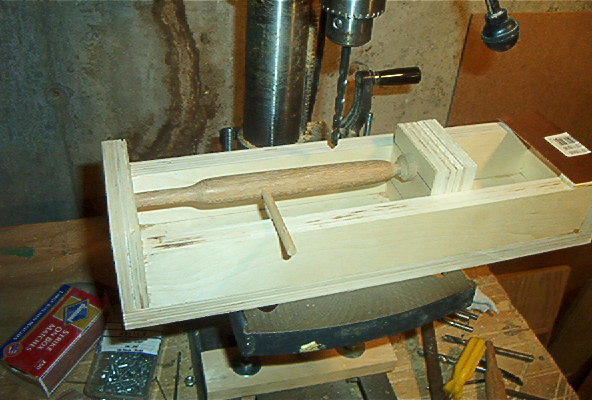

I raised the level of the nail and the screw so they are 1/8 in taller than the sides. I did this so that I can put a 1/4 dowel in the belly hook hole, and rotate the dowel so it lays on either side of the jig. This rotates the plug 90 degrees for the eye holes...
|
|
|
|
|
|
|
12-16-2004, 11:43 PM
|
#33
|
|
Registered User
Join Date: Nov 2004
Location: plymouth,ma
Posts: 1,142
|

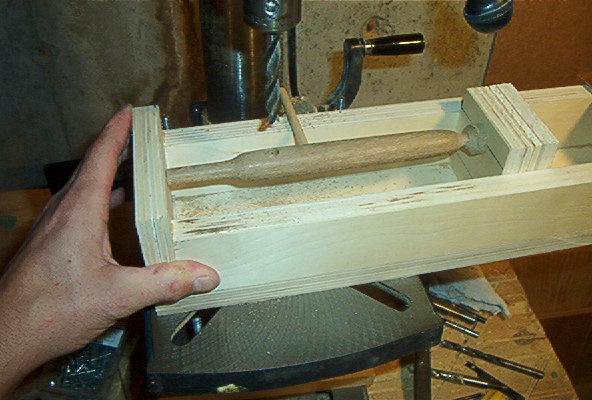

Then you just push the dowel to the other side to drill teh other eye...
|
|
|
|
|
|
|
12-17-2004, 06:16 AM
|
#34
|
|
Really Old & Really Grumpy
Join Date: Jun 2002
Location: not a clue
Posts: 4,860
|
 very nice...you just showed me something I hadn't thought off...txs. |
BOAT fish do count.
|
|
|
|
|
12-17-2004, 06:45 AM
|
#35
|
|
Super Moderator
Join Date: Aug 2000
Location: Middleboro MA
Posts: 17,125
|
Good thinking DJ
|
|
|
|
|
|
|
12-17-2004, 07:03 AM
|
#36
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|
Nice idea DJ. I have some stainless if you want it.
|
|
|
|
|
|
|
12-17-2004, 07:19 AM
|
#37
|
|
Registered User
Join Date: Nov 2004
Location: plymouth,ma
Posts: 1,142
|
Thanks Mac, I'll take you up on that!
I'm going to build a jig for the hand drill tonight similar to what you showed me...
I can drop by after work any day next week (mon-wed), if any of those days works ok let me know...
I was so pleased with the way the jig turned out. I have a fence that is attached via slots in the drill press table. When I push it all the way back it is 2 1/8 from dead center. So I made my jig 4 1/4 wide, so all I have to do to line up the jig is push the fence back as far as it goes and I should be centered. To make sure its centered I put in a 1/4 bit and with the drill off I can lower the drill and if it goes into the hole for the dowel center, I know I am centered.
The jig is reversable in that I can flip it around to the other side and its still centered. That way I can always hold the jig w/ the left hand and lower the drill with the right... |
|
|
|
|
|
|
12-17-2004, 07:22 AM
|
#38
|
|
Spot Preserver
Join Date: Jan 2003
Location: Mansfield
Posts: 2,461
|
That dowel trick is a great idea. CS- I will be copying your jig tonight. Thanks for posting pics.
|
|
|
|
|
|
|
01-04-2005, 02:21 PM
|
#39
|
|
Boston Anglah
Join Date: Sep 2004
Location: Sitting on top of the world with my legs hangin free
Posts: 3,322
|
Thanks guys for the great How to-...gonna give this one a try tonight or this week..thnx for sharing...  |
Used hard and put away dirty....
|
|
|
|
|
01-04-2005, 02:44 PM
|
#40
|
|
Registered User
Join Date: Nov 2003
Location: RI
Posts: 21,463
|
I think I'm going to go file a Patent for all the jigs in this thread
Makes my jigs look like junk...
-spence |
|
|
|
|
|
|
01-04-2005, 02:47 PM
|
#41
|
|
Boston Anglah
Join Date: Sep 2004
Location: Sitting on top of the world with my legs hangin free
Posts: 3,322
|
I just can't stop reading all the how to's for plugs....great threads guys, thanks alot for sharing...
Thnx JohnR |
Used hard and put away dirty....
|
|
|
|
|
|
