| Plug Building - Got Wood? Got Plug? |
 |
|
09-16-2011, 04:48 AM
|
#31
|
|
Registered User
Join Date: Dec 2010
Posts: 342
|

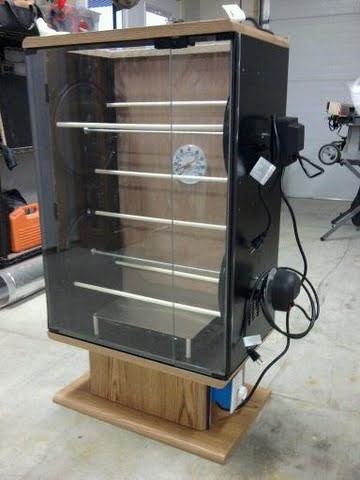

My updated drying wheel made this spring. Temp range from ambient to about 120 degrees.
Works great!!!
MS
Nice pics, this forum has huge talemt and creativity  |
|
|
|
|
|
09-16-2011, 05:02 AM
|
#32
|
|
Seldom Seen
Join Date: May 2001
Posts: 10,418
|
Muskey, that is slick! Need details... What did you salvage the case from? What motors? That is a piece of furniture! I would be epoxying in my TV den with that set up! Sweet...
|
“Americans have the right and advantage of being armed, unlike the people of other countries, whose leaders are afraid to trust them with arms.” – James Madison.
|
|
|
|
|
09-16-2011, 07:22 AM
|
#33
|
|
Registered User
Join Date: Jan 2010
Location: S. Easton
Posts: 1,676
|
Quote:
Originally Posted by Muskyslayer96
My updated drying wheel made this spring. Temp range from ambient to about 120 degrees.
Works great!!!
MS
Nice pics, this forum has huge talemt and creativity |
Looks like you found a curbside entertainment center and put it to good use!!! Is that a exhaust fan in the bottom?
Great job!!!!
Very impressive!!! |
"Always two there are, no more, no less: a master and an apprentice." >> Yoda
|
|
|
|
|
09-17-2011, 06:09 AM
|
#34
|
|
Registered User
Join Date: Dec 2010
Posts: 342
|
Thanks guys!
I bought the old entertainment center on CL for $20. I cut a hole in the top and added a piece of lexan for light. I cut a hole in the bottom and added a heat lamp with a dimmer switch so I can control the temp (ambient to 120), and a SS heat shield so I can distribute the heat when using the bottom wheel. I sealed the glass gaps at the hinges with the same sealer you would use to winterize your front door. I also have an old small axial fan in the lower unit to help circulate the heat. I used two grill rotisserie motors that I switched out with threaded rod, and the circles are rigid plastic 5 gallon paint lids. Keeps the dust out and the heat really helps the cure time.
MS
|
|
|
|
|
|
|
09-17-2011, 02:32 PM
|
#35
|
|
Registered User
Join Date: Jan 2010
Location: S. Easton
Posts: 1,676
|
I need to pass along a great tip from Ecduzitgood, it will help to add a mirror to the back wall of the cabinet. Helps you see bubbles and adds light to the cabinet.
Love the creativity!!!
OD
|
"Always two there are, no more, no less: a master and an apprentice." >> Yoda
|
|
|
|
|
09-17-2011, 06:25 PM
|
#36
|
|
Registered User
Join Date: Dec 2010
Posts: 342
|
OD Mike
That is a great idea!!!!
Thanks for the tip
MS |
|
|
|
|
|
|
09-17-2011, 07:30 PM
|
#37
|
|
Registered User
Join Date: Aug 2011
Location: Cape Cod
Posts: 91
|
very nice!!!!!!!!!!
|
|
|
|
|
|
|
09-17-2011, 08:55 PM
|
#38
|
|
Registered User
Join Date: Feb 2008
Location: RI
Posts: 57
|

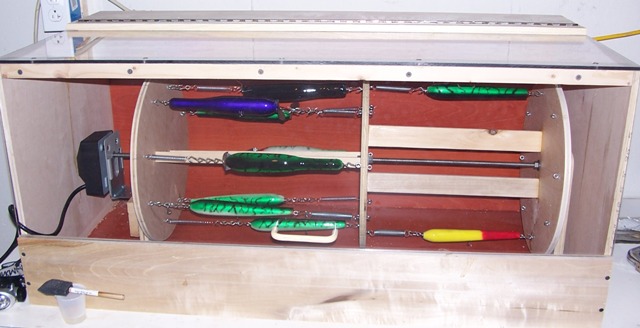

here is my old one
and my new one
I went with the wheels spinning versus the inline because I wanted to put more plugs on it at once and not worry about the epoxy sagging, it is a little trickier to apply the epoxy but I like it better. I need to add a light so I can see better and add a little heat for when I am applying epoxy in the winter.
|
|
|
|
|
|
|
|
