01-03-2011, 08:45 AM
|
#1
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Masterlure
I want to do a set of Masterlure plugs, but I can only get my hands on the smaller freshwater ones. Anyone have any spec.'s on the Rocket, Snook and popper? Found the dimensions on the eels and may try them also. Thanks
|
 "The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
01-03-2011, 07:56 PM
|
#2
|
|
Oblivious // Grunt, Grunt Master
Join Date: Nov 2005
Location: over the hill
Posts: 6,682
|
I only have a popper (they made several) and some eels.
The popper is 6" long
3.1oz 5/0 hooks
Floats vertical with water level just above the belly hook.
tail is .55
1" from tail .61
2" 1.08
3" 1.35
4" 1.40
5" 1.42
hook is 4.25" from tail
cup 1.25"+
face angle @70 degrees
Tail weight .375oz/11grams

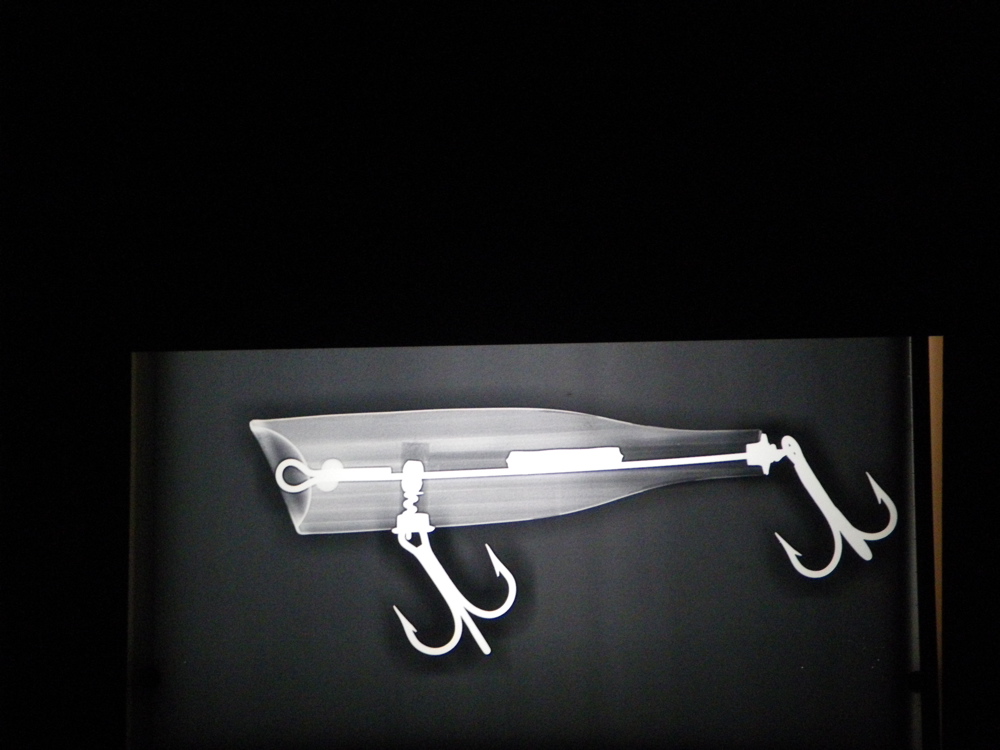

The xray shows the weight mid plug, but it is a sloppy fit and slides in there from the hook all the way to the tail. Pretty sure it spent most of its time in the tail.
|
|
|
|
|
|
|
01-03-2011, 08:27 PM
|
#3
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|

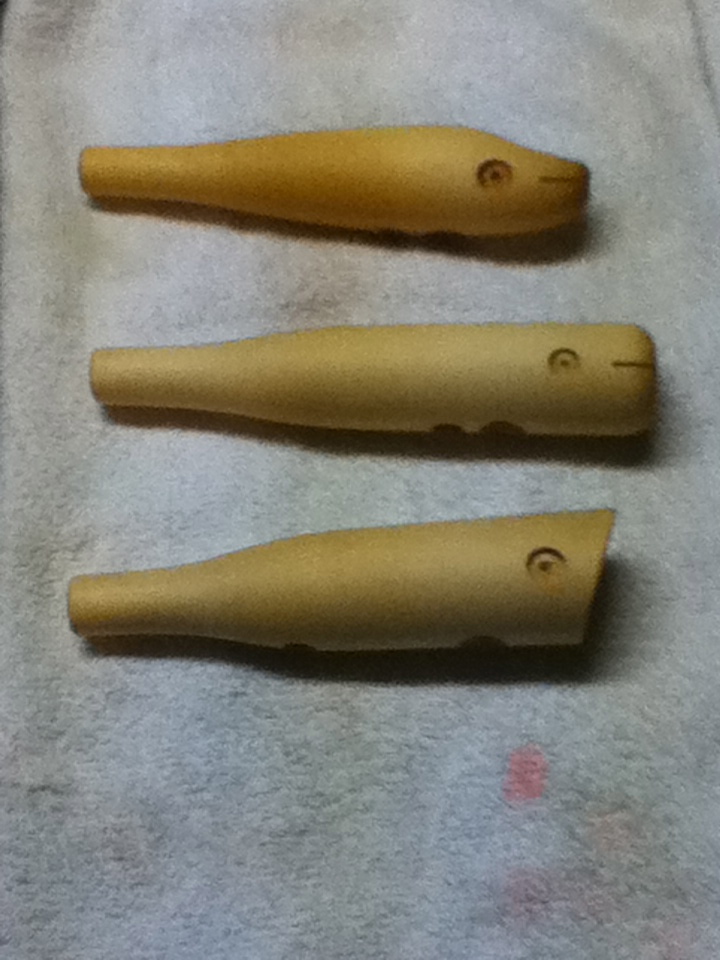

Thanks George, here are some I did this morning based on photo's and guess work.
|
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
01-05-2011, 10:07 AM
|
#4
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
Nice. Always have luved their paint jobs, unfortunately paint seems to flake off a lot on the plugs I have seen. Just like the color combos they did. If you get a chance to see some pristine ones they are beautiful works of art.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-06-2011, 09:44 AM
|
#5
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|

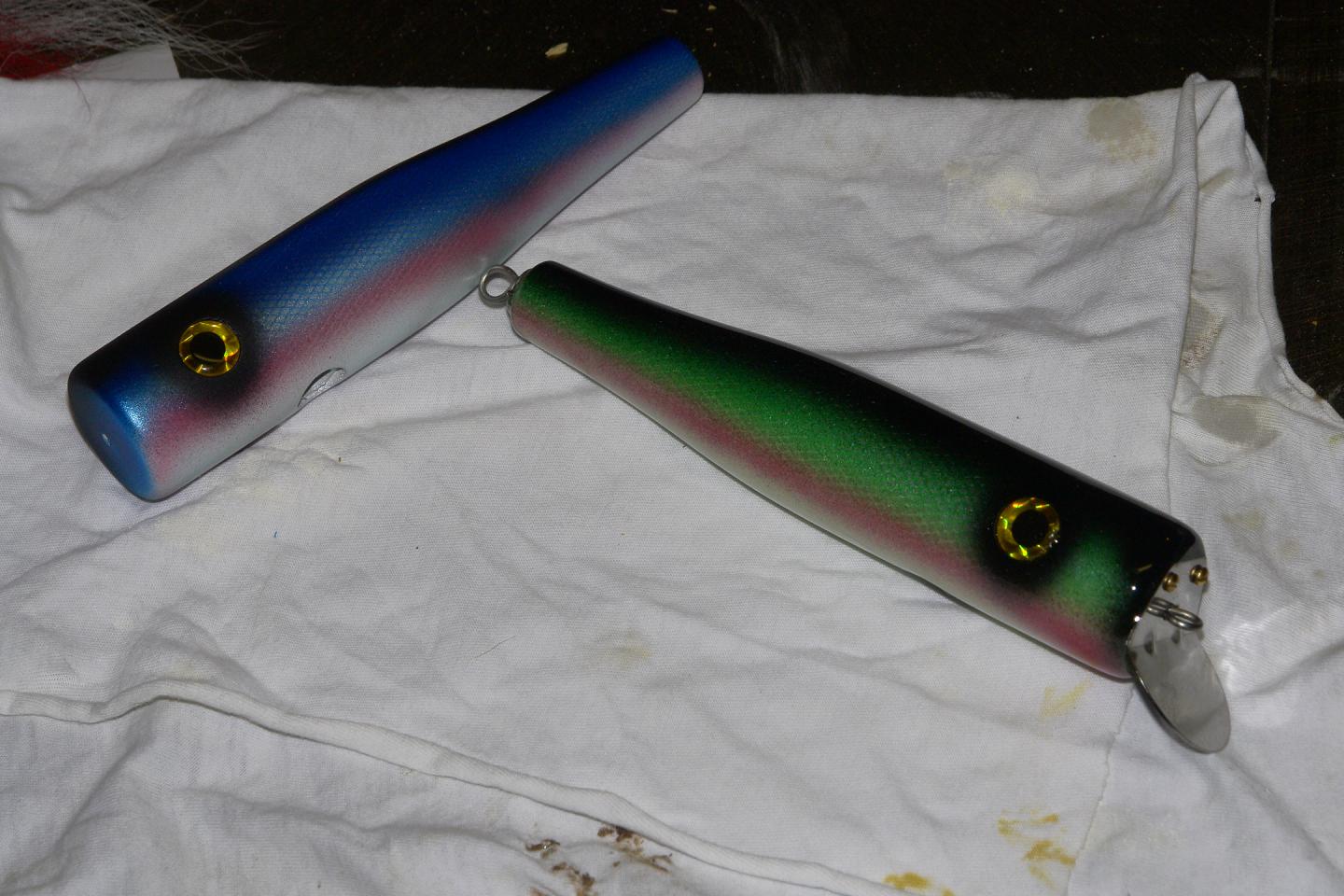

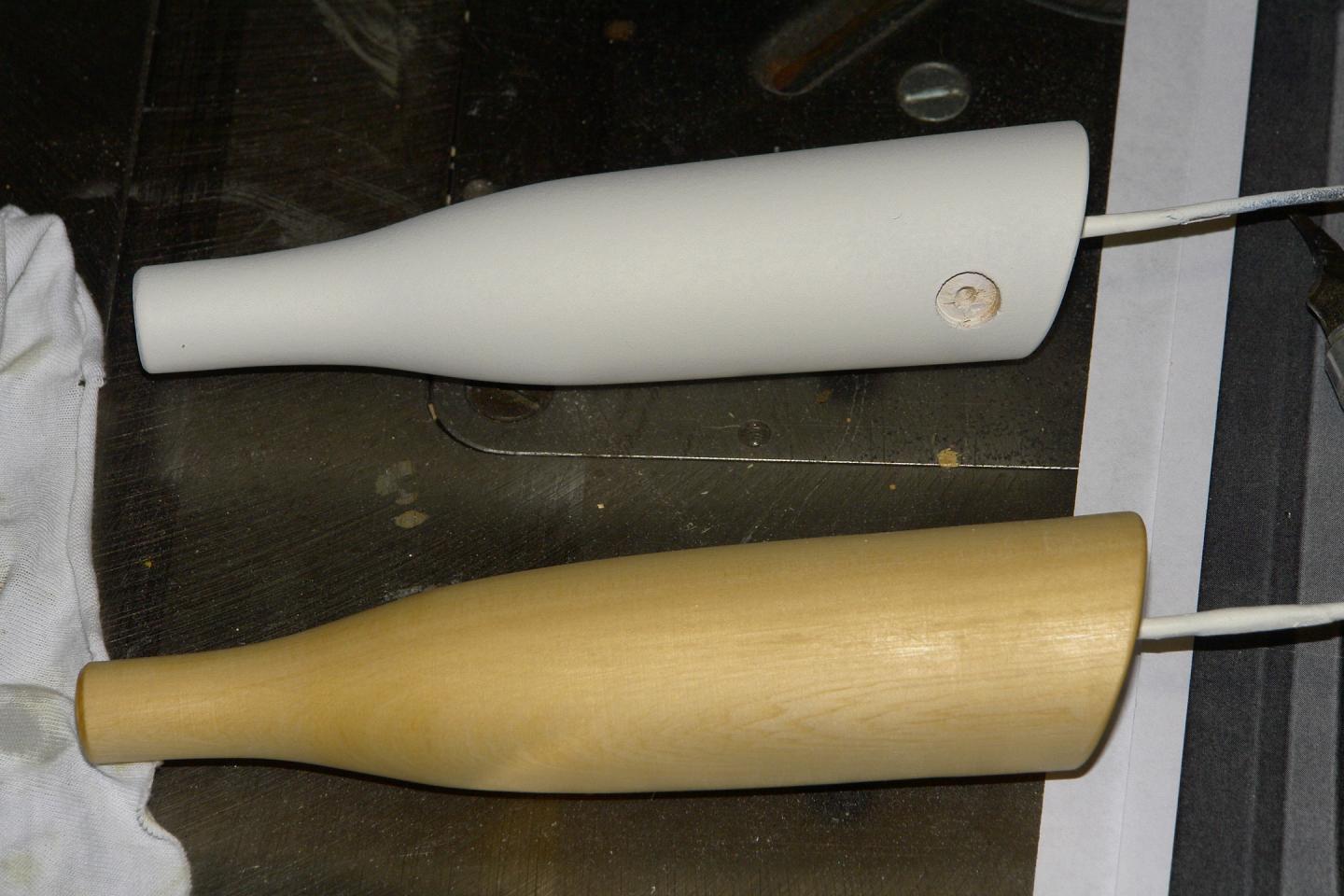

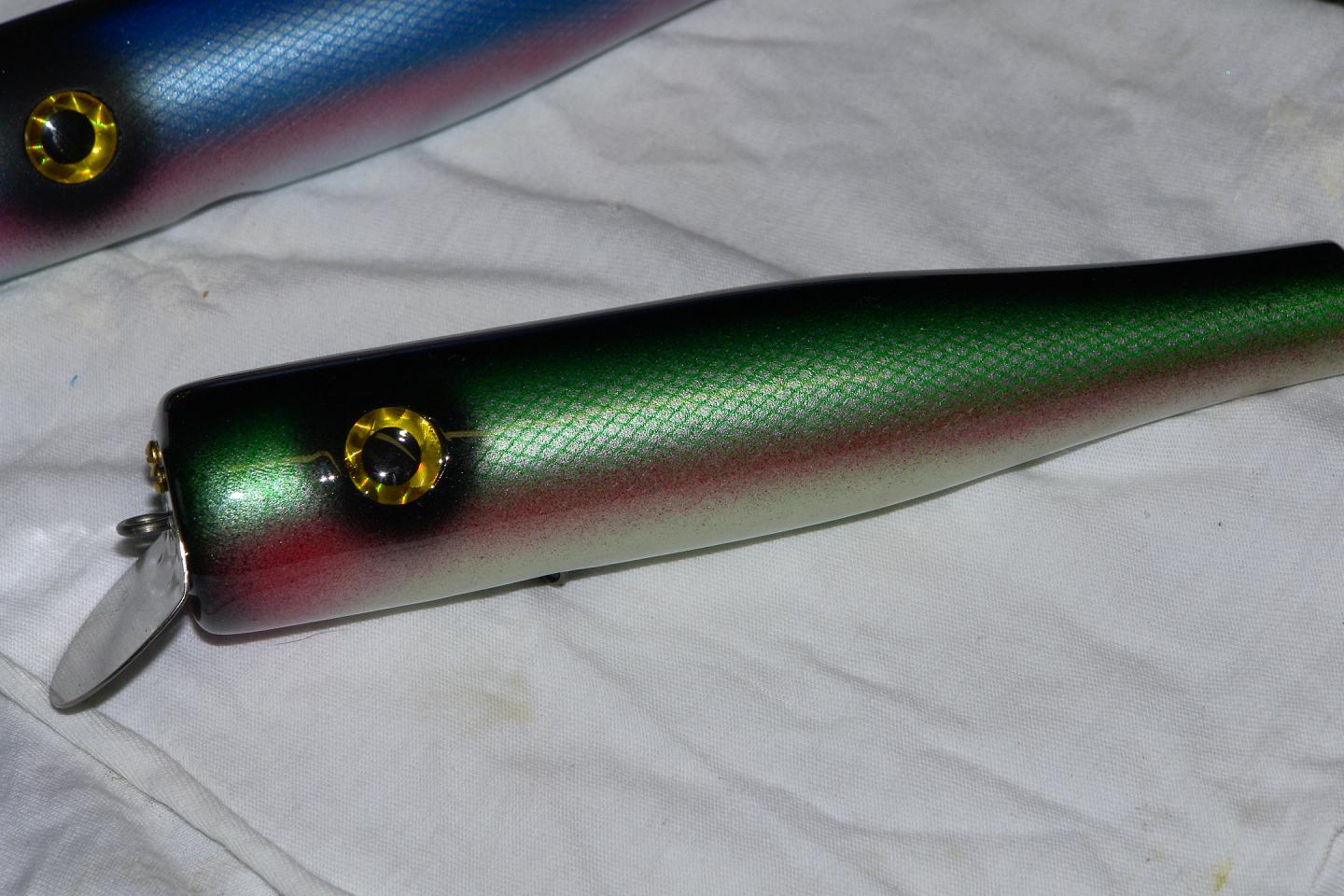

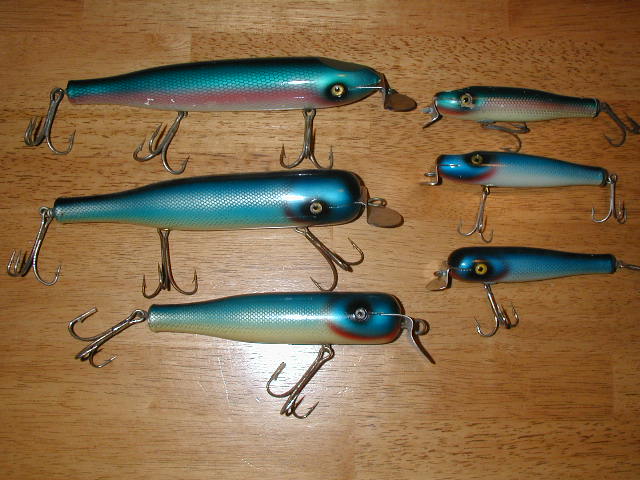

Paul, you're right ! I love the paint work on the Masterlures, and the plug designs too. Here's some practice paints. Hopefully get them down a little better on the Masterlure copies! Also a photo of the popper I did just using photo's and guess work (a little thicker at tail) compared to the bottom one which is from Numby's spec's....Thanks again George
On to searching more site's for Masterlure paint schemes!!
|
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
01-06-2011, 12:25 PM
|
#6
|
|
><(((°> ><((( °> ><(((°>
Join Date: Feb 2007
Location: Falmouth, Ma
Posts: 1,520
|
Nice paint jobs!
|
60 % of the time, it works every time.
|
|
|
|
|
01-06-2011, 12:58 PM
|
#7
|
|
All up in the Interweb!
Join Date: Mar 2002
Location: In the dog house.
Posts: 5,205
|

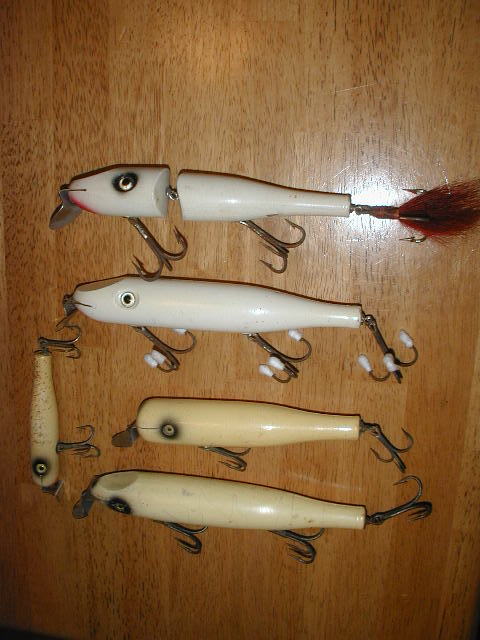

I have a spin atom size, giant pikie style and smaller jointed I can lend you for copying purposes if needed.
|
Co-Host of The Surfcast Podcast
"Out there in the surf is where it's at, that's where the line gets drawn in the sand between those who talk fishing and those who live it."
- a wise man.
One good fish, a sharpie does not make...
Certified rock hopping billy goat.
|
|
|
|
|
01-06-2011, 03:08 PM
|
#8
|
|
Calling Jon The Fisherman
Join Date: Jan 2003
Location: The Sack Of Mass
Posts: 2,357
|
SWE has a few of them in the net on their wall, they have a jointed and a few others.
|
Surf Asylum Lures, Custom Lures for the "Committed"
Official S-B Sponsor
|
|
|
|
|
01-06-2011, 04:01 PM
|
#9
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Quote:
Originally Posted by tlapinski
I have a spin atom size, giant pikie style and smaller jointed I can lend you for copying purposes if needed.
|
Looking for some measurements on any of these "Some Plugs Thread" (6" and larger models). A side shot photo and measurements in 1" increments would be great.....
Thanks and hope to have some painted by the weekend and will post pic's! |
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
01-06-2011, 08:10 PM
|
#10
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
nice job on the paint. If you are looking for pics look above in this forum in the sticky section , 4th one down, called some plugs thread link. Many lures in there and probably some Masterlures if you look thru it. Going to take some time though but a great wealth of pictures in there if you didn't already know.
http://www.striped-bass.com/Stripert...read-link.html
Page 24 and 25 have some . I had to go in and look, again
Last edited by ProfessorM; 01-06-2011 at 08:25 PM..
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2011, 06:07 PM
|
#11
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
some nice pics here
Masterlure |
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
01-08-2011, 07:20 PM
|
#12
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Found this one too!!
Home Page Some good stuff here!!

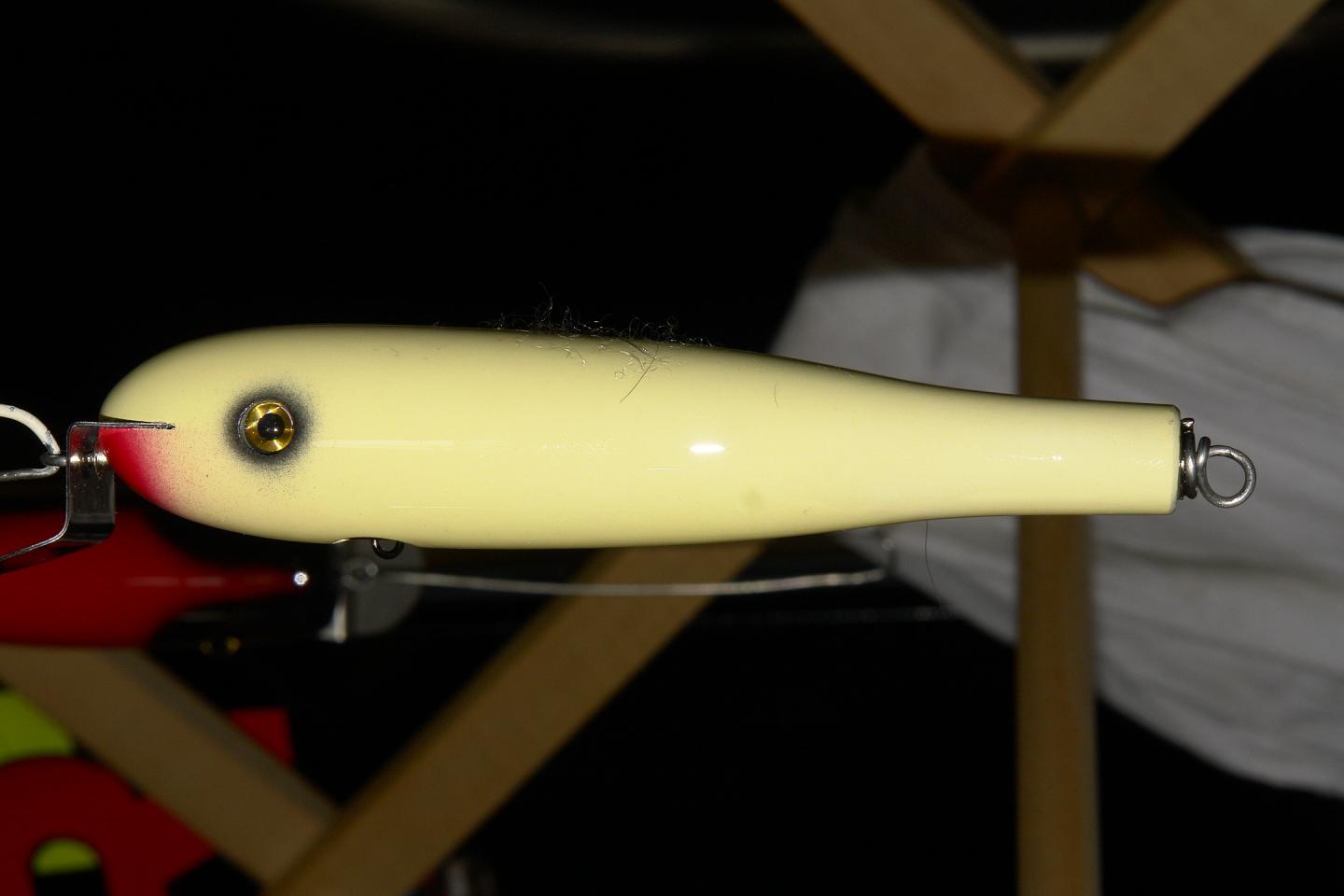

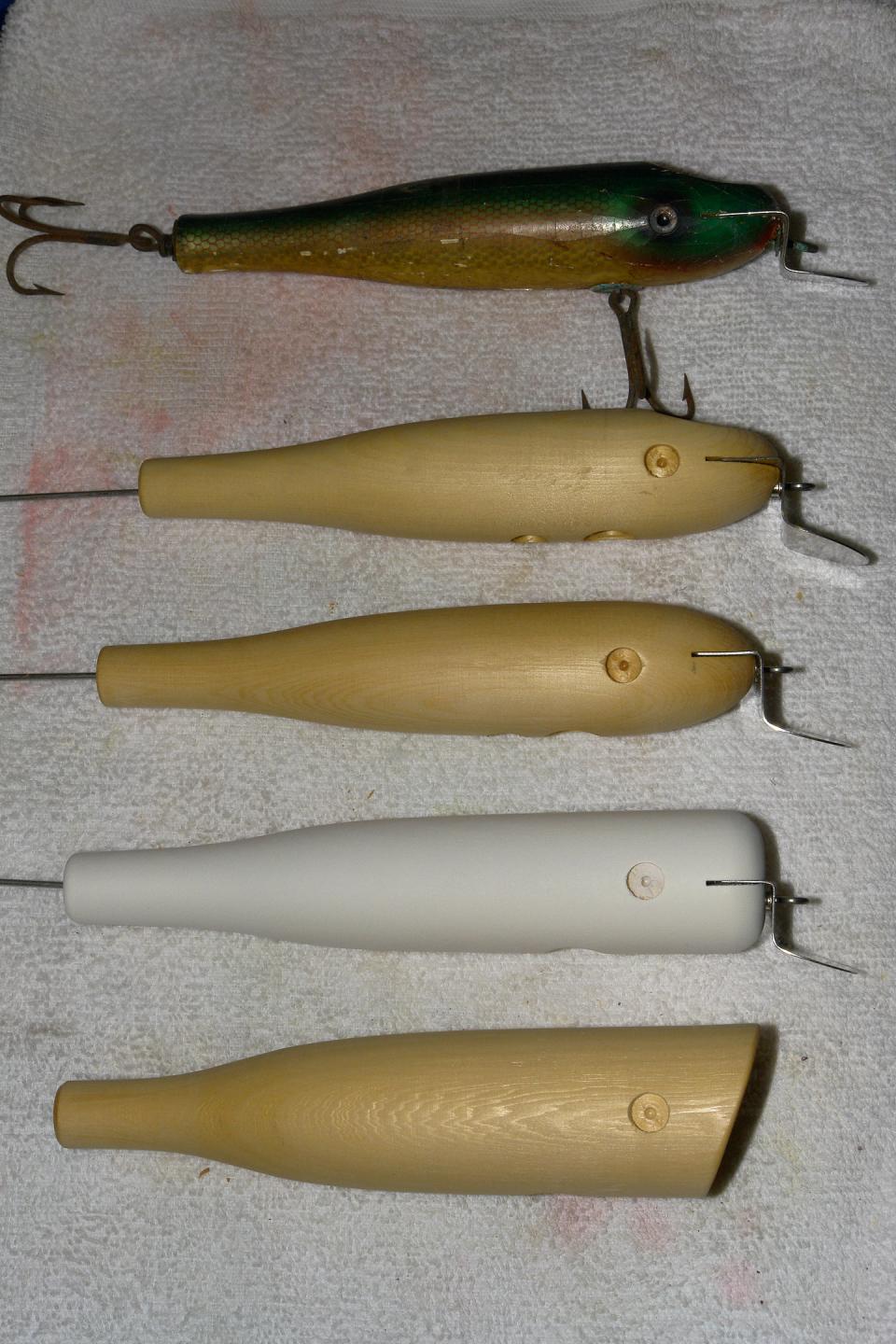

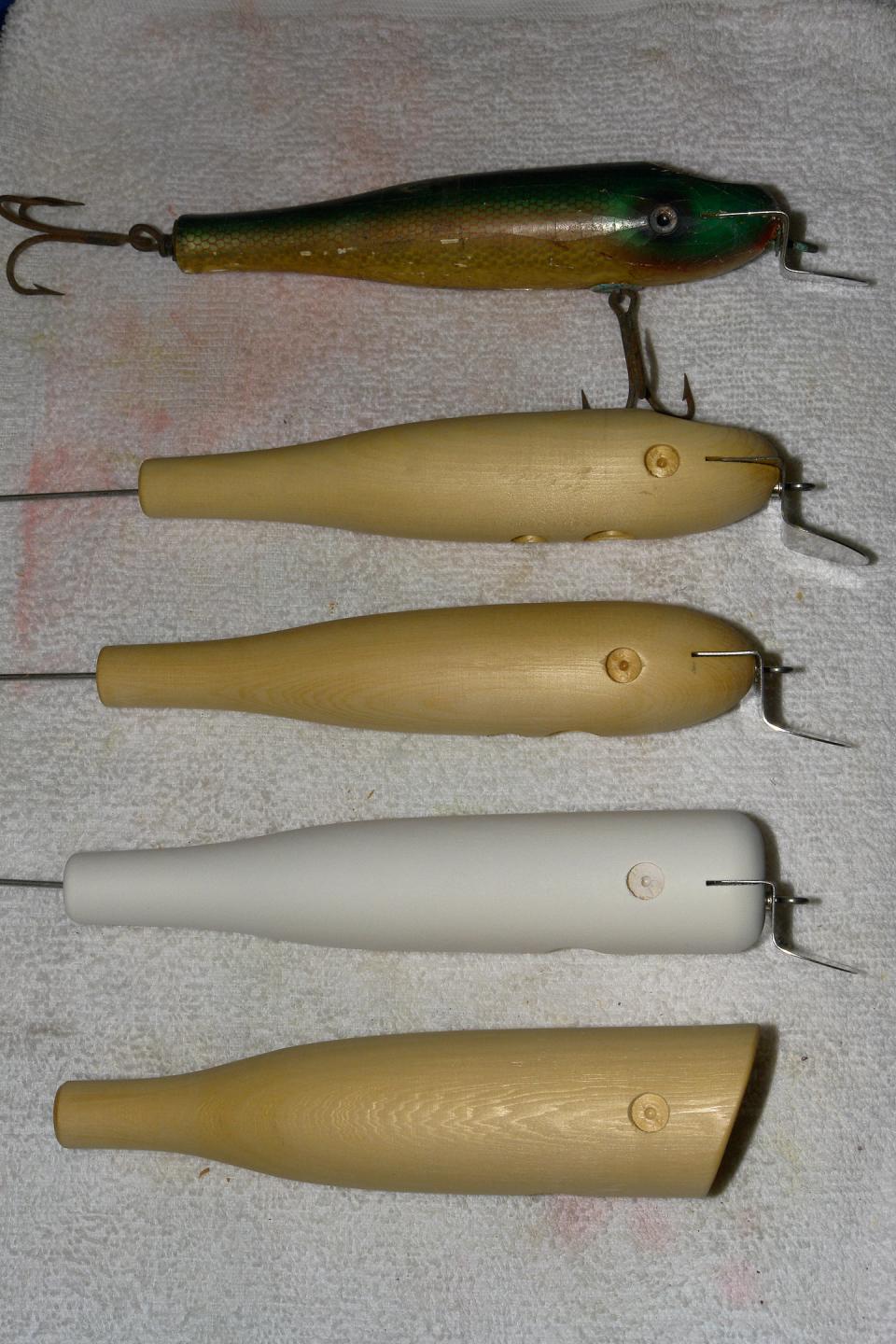

Today was a snowy Masterlure day:
|
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
01-08-2011, 07:58 PM
|
#13
|
|
Registered User
Join Date: Jun 2008
Location: Lexington, MA
Posts: 1,940
|
Sarge-
can you post the dimensions for the small pikie... I want to make my brother one for fishing Lake Champlain in VT
|
 Blond Terror
|
|
|
|
|
01-08-2011, 08:11 PM
|
#14
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Quote:
Originally Posted by blondterror
Sarge-
can you post the dimensions for the small pikie... I want to make my brother one for fishing Lake Champlain in VT
|
I'll do a drawing and dim. ( it's 6") tomorrow and post!
Masterlure called this a "Snook" |
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
01-11-2011, 08:53 PM
|
#15
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|

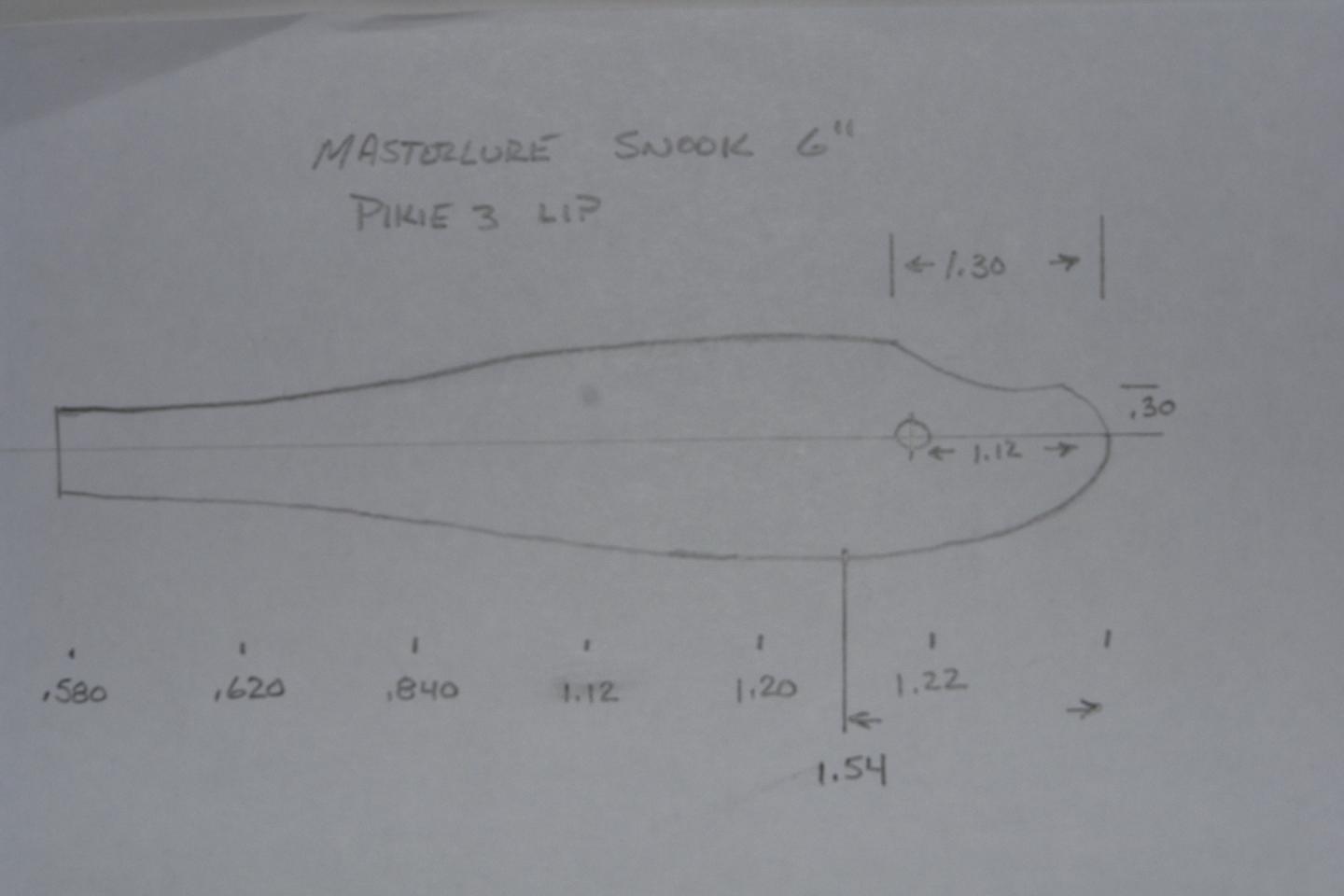

Here ya go!
Quote:
Originally Posted by blondterror
Sarge-
can you post the dimensions for the small pikie... I want to make my brother one for fishing Lake Champlain in VT
|
Here it is: |
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
01-15-2011, 09:41 AM
|
#16
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|

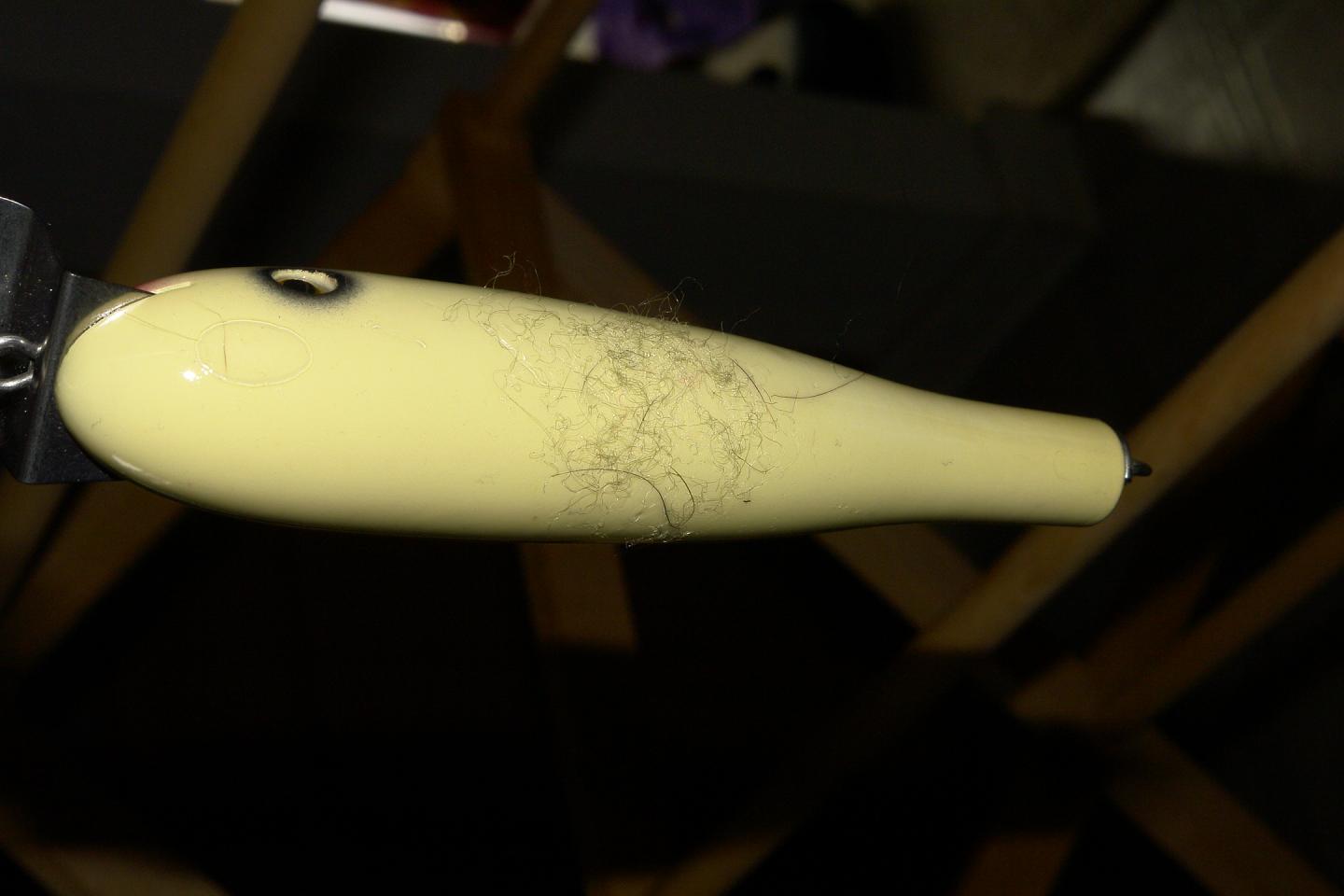

Well I got two done last night and this is what I woke up to!   .............Seems the wife knocked them to the floor, thank god the Capt. Bill's was OK |
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
01-15-2011, 09:43 AM
|
#17
|
|
Old Guy
Join Date: Oct 2004
Location: Mansfield, MA
Posts: 8,760
|
Manly lures I say
|
|
|
|
|
|
|
01-15-2011, 09:52 AM
|
#18
|
|
Registered User
Join Date: Jun 2008
Location: Lexington, MA
Posts: 1,940
|
Bummer... can you peel off the dog hairs and use as is or are you stripping and re-repainting.... the fish don't care ...
Thanks for the Snook dimensions... Now I need to make the ML Rocket...
BT
|
Blond Terror
|
|
|
|
|
01-15-2011, 09:55 AM
|
#19
|
|
BigFish Bait Co.
Join Date: Apr 2003
Location: Hanover
Posts: 23,392
|
Go kick her shoes around!!!  |
Almost time to get our fish on!!!
|
|
|
|
|
01-15-2011, 10:10 AM
|
#20
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Quote:
Originally Posted by striperman36
Manly lures I say
|
Quote:
Originally Posted by blondterror
Bummer... can you peel off the dog hairs and use as is or are you stripping and re-repainting.... the fish don't care ...
Thanks for the Snook dimensions... Now I need to make the ML Rocket...
I'm going to just let it harden up good and then see if I can sand some of it off, probably just give it to a friend, like you say "fish don't care", turned another and will do today.
BT
|
Quote:
Originally Posted by BigFish
Go kick her shoes around!!! |
Want to kick more than her shoes |
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
01-15-2011, 11:45 AM
|
#21
|
|
Oblivious // Grunt, Grunt Master
Join Date: Nov 2005
Location: over the hill
Posts: 6,682
|
Laugh about it and fish it.
That popper looks right on, and very nice paint.
|
|
|
|
|
|
|
01-16-2011, 09:04 AM
|
#22
|
|
Registered User
Join Date: Sep 2006
Location: S. Jersey Shore
Posts: 912
|
Try Again!!

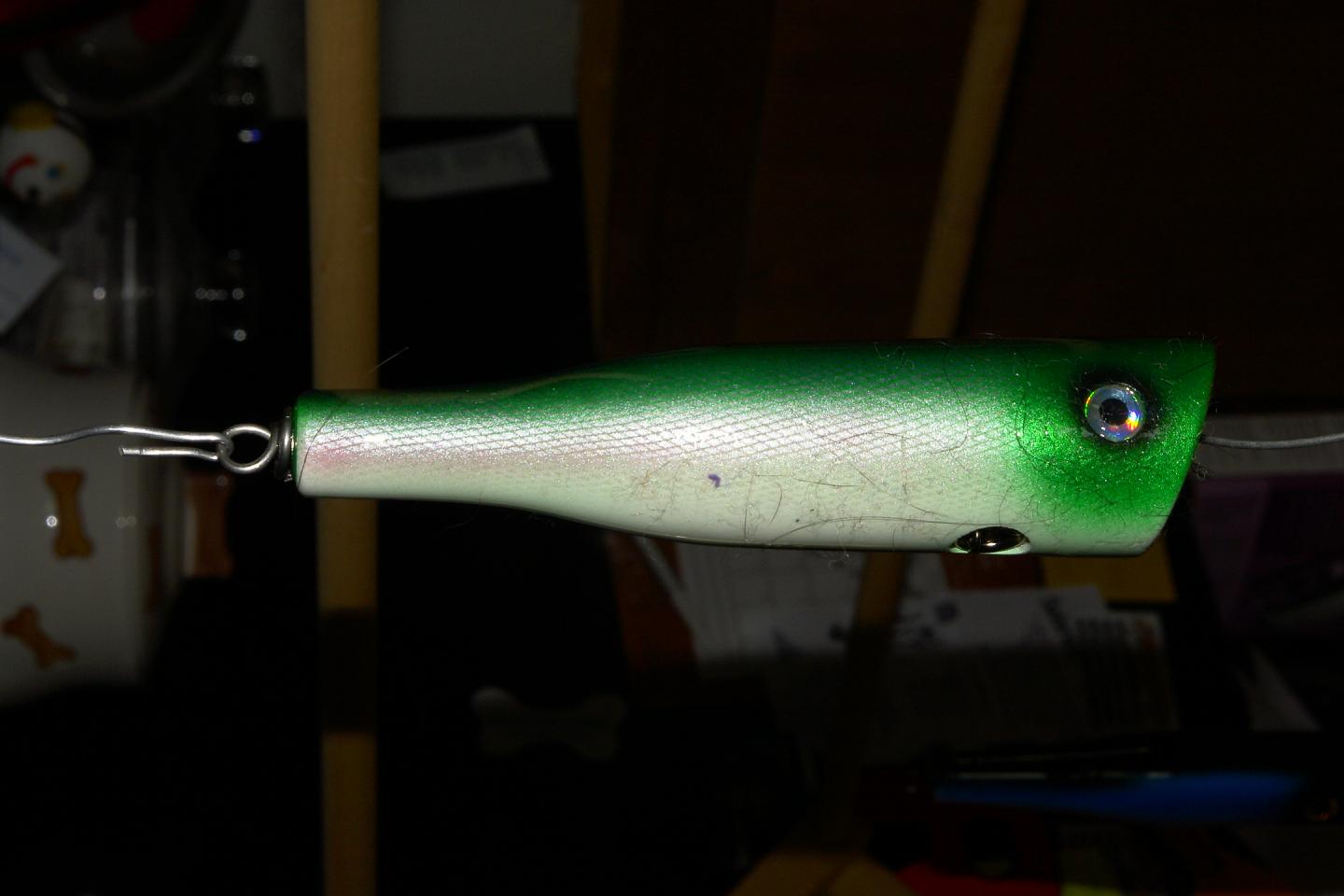

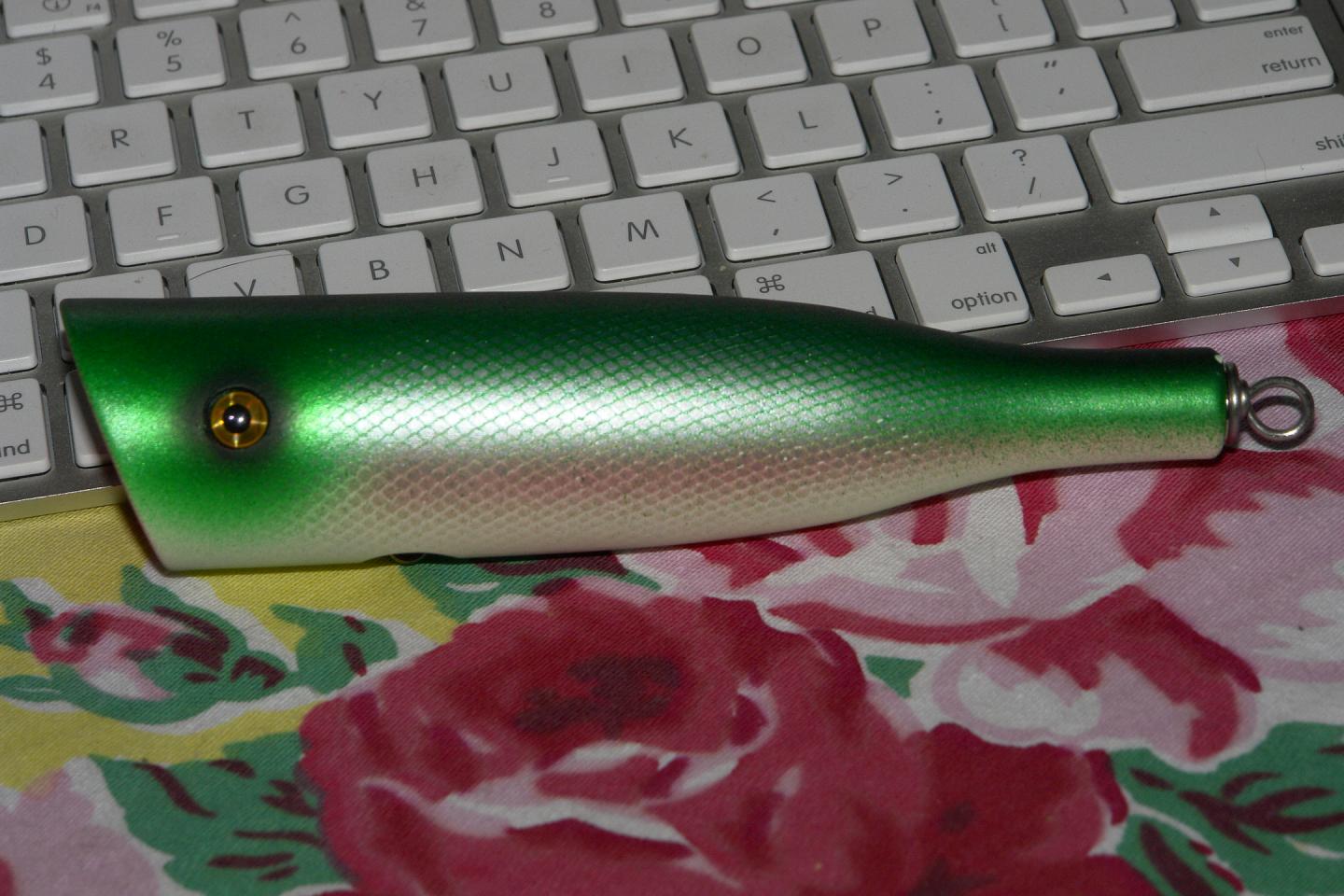

Thanks George, This one is from your spec's. Painted it last night, along with a Conrad and the Cap'n Bill's Redtop special popper |
"The lips stand out because she wants to suck on your Pikie."....Mike Laptew
Van Staal Service/Repair Technician
|
|
|
|
|
