My Jig for Canal Specials
earlier this building season there was a thread on jigs for cutting the bottoms on canal specials.. Mike at M&Ds has a nice one that is set up for his std sized canal special.

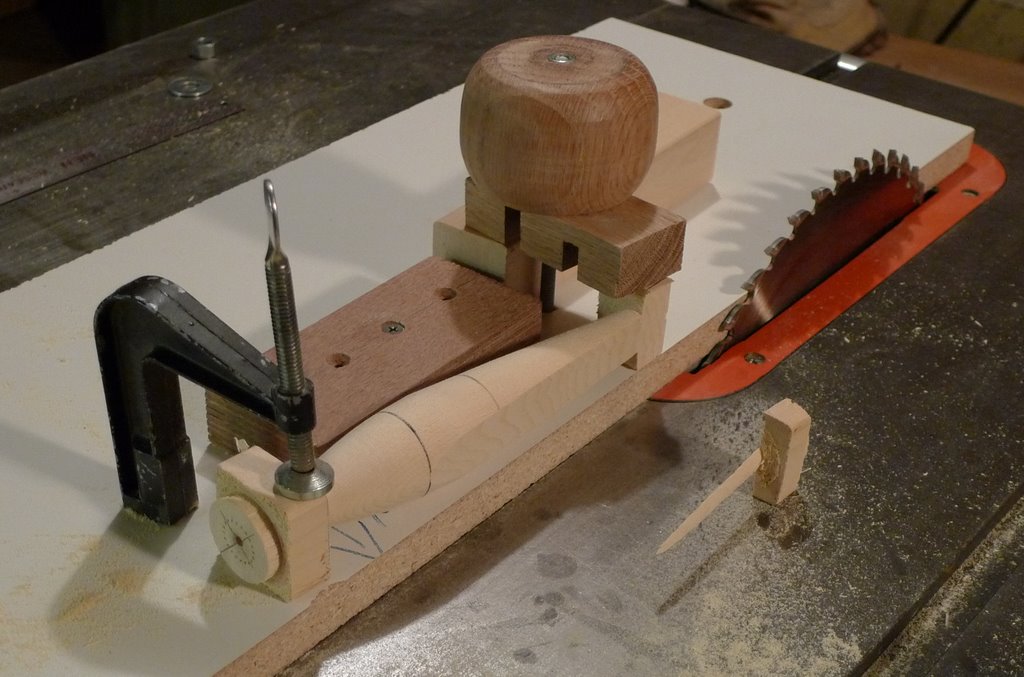

I modified a jig I made for cutting tapered legs on Shaker furniture by adding a hold down clamp that is removable.
here are some pics.... you need to sight line the piece with the proper marks on the blank but it is safe and easy to use if you know how to use a table saw.
here are 3 pics that show it...
|
 Blond Terror
|
|
|
|
04-12-2011, 07:33 AM
|
#2
|
|
Registered User
Join Date: Aug 2005
Location: the Dirty Jerz
Posts: 276
|
nice jig. Nothing gets my bllod flowing like a good woodworking jig. Good job.
|
|
|
|
|
|
|
04-12-2011, 08:49 AM
|
#3
|
|
BigFish Bait Co.
Join Date: Apr 2003
Location: Hanover
Posts: 23,392
|
When I turn my plugs I leave the flat ends on so when I do my drilling and lip slot cutting etc. all my jigs are on the flat, more stable and easier to use! Also more consistent in the end! Nice jig! Mine is similar except I have a simple "angle" right on the face of the jig which holds the piece in place! Can post pics later if you want?
|
Almost time to get our fish on!!!
|
|
|
|
|
04-12-2011, 12:44 PM
|
#4
|
|
Registered User
Join Date: Oct 2010
Posts: 6
|
Bigfish,
Would love to see the pic! Like wriker said above, nothing is better than a good jig!
Thanks
|
|
|
|
|
|
|
04-12-2011, 01:50 PM
|
#5
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
nice jig. Luv jigs but I find this plug is very easily done by just sanding on a belt sander to lines put on during turning and then doing holes using flat as your reference. I also don't leave square ends on my plugs. Not saying your way is not right just giving my 2 cents. In the end both give same results.
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
04-12-2011, 02:04 PM
|
#6
|
|
BigFish Bait Co.
Join Date: Apr 2003
Location: Hanover
Posts: 23,392
|
Try doing 200 that way Paul! Simple jig setup on the table saw to run in the slot makes short accurate work of 10 or 200 bodies!  |
Almost time to get our fish on!!!
|
|
|
|
|
04-12-2011, 04:19 PM
|
#7
|
|
Plug Builder in Training
Join Date: Apr 2000
Location: wareham MA
Posts: 4,046
|
|
|
|
|
|
|
04-12-2011, 05:03 PM
|
#8
|
|
Registered User
Join Date: Jan 2010
Location: S. Easton
Posts: 1,676
|
Thanks for sharing Chris! Like the detailed pictures also!!!!
|
"Always two there are, no more, no less: a master and an apprentice." >> Yoda
|
|
|
|
|
02-23-2013, 08:45 AM
|
#9
|
|
Seldom Seen
Join Date: May 2001
Posts: 10,543
|
Quote:
Originally Posted by BigFish
When I turn my plugs I leave the flat ends on so when I do my drilling and lip slot cutting etc. all my jigs are on the flat, more stable and easier to use! Also more consistent in the end! Nice jig! Mine is similar except I have a simple "angle" right on the face of the jig which holds the piece in place! Can post pics later if you want?
|
Still would like to see your set up, Larry.... |
|
|
|
|
|
|
02-23-2013, 10:16 AM
|
#10
|
|
Registered User
Join Date: Aug 2010
Location: A village some where
Posts: 3,436
|
Quote:
Originally Posted by mikecc
|
Very Nice Mike, i know you had showed Mojo, and we made something similar a few weeks back good stuff! I like the idea of the shim and the different lengths you can do on yours just locking it in with an aluminum rod is Brilliant and simple. |
|
|
|
|
|
|
02-23-2013, 01:28 PM
|
#11
|
|
Registered User
Join Date: Nov 2009
Location: RI
Posts: 446
|
belt sander is more fun  but I'm not making 200... more like 20 |
|
|
|
|
|
|
