protoype

[machinist]

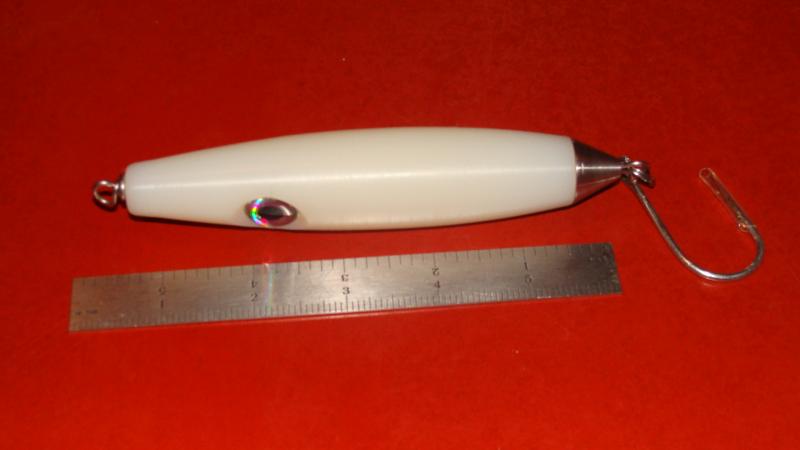

first time posting photos. here goes, a few of our prototype squid plugs.

[Tagger]

Our ? commercial product ?

[BigFish]

SPAM-alicious!

[Tagger]

looks very clean ... machined ,,, alot of work there .. no ?

[machinist]

our, just trying to give credit to a few canal gentlemen who have taken me under their wing with some advice. the one pictured is made from 1 1/8" dia. natural color nylon. time to machine is aprox. a few minutes to form the shape. this is done with a pc. of hardened tool steel blade on a metal cutting lathe. the form tool is feed into the work pc. using the cross slide to a dial reading. when correct dia. is obtained the dial is set and the process is easy. have been trying some pvc (grey in color)

[Karl F]

what is the material used near the tail?
SS...Lead?..

can def. tell a machinist made that lure...

clean...very clean.

[numbskull]

Nice workmanship. Now so much for plugs, how do you feel about making dies to stamp lips?

[BigFish]

[machinist]

thanks. nose is 303 stainless steel. lip die , kick press, arbor, vise, or power press being used? just blanks or complete with hole and bend?

[eskimo]

looks like it would cast mile. does it float?

[numbskull]

Originally Posted by machinist

thanks. nose is 303 stainless steel. lip die , kick press, arbor, vise, or power press being used? just blanks or complete with hole and bend?

I was joking, sort of, but if you can make lip dies (or have a laser/water jet)......well I'm not greedy, I'd be happy with just blanks. As for a press, beats me but I'd track down whatever I needed.

It is not fair, however, to sidetrack your thread or pressure you for my advantage. Welcome to the site, your stuff is neat, and if you get more involved and want to talk making lips give a shout.

[Back Beach]

Originally Posted by numbskull

It is not fair, however, to sidetrack your thread or pressure you for my advantage. Welcome to the site, your stuff is neat, and if you get more involved and want to talk making lips give a shout.

Thinly veiled begging at its best....

[machinist]

i took some casts at a local h.s. football field. using a eyeless 10' daiwa pole with a abu garcia ambassador bg 7000 hsn reel with 20lb mono. was ble to get 100yds. had several canal fisherman makes some casts at the canal and they surpassed my casts. flies like a missle, no wobble. it does sink, but i try to stop the filght just before the water. on the surface it swims well.

[go4broke44]

I like it!

[ProfessorM]

looks great. Neat idea.

I have pretty much tried making some kind of fishing lure out of everything possible, material wise. Stainless, delrin, pvc, polycarb, titanuium, aluminum, HDPE, you name i've tried it . I still prefer wood as that is what I find most satisfying. Below is the first plug I ever made. I copied a large Gibbs polaris. I figured I would take a piece of tool steel cut out the profile on a small cnc bridgeport and then harden it. I then jammed it into a solid piece of PVC on a large lathe. Problem is you would need a large lathe to do something like this as it takes a lot of power. It ended up being the first and last plug ever built with that tool. Not worth it. That pvc plug also weighs 6 oz as it sits so I think the pvc plugs some are building out of pvc are not pure pvc, as it is really heavy.

[machinist]

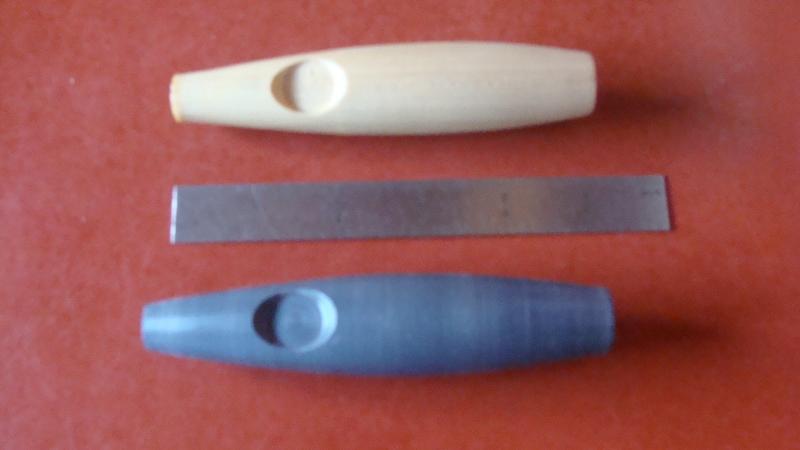

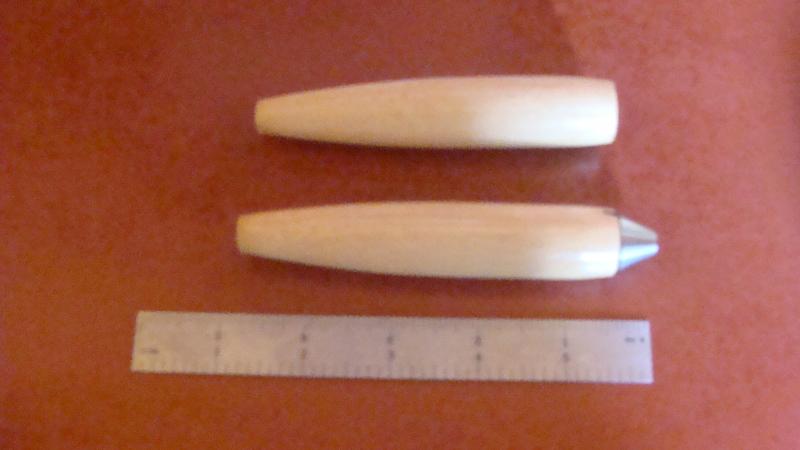

hello, here are a few more pics of what i have produced using the skive tool method. grey one is pvc.

[Eric Roach]

Neat design -- they look like they'd throw a country mile.

[ProfessorM]

it's alive !!! , alive I tell you

[machinist]

Happy New Year All

[machinist]

as to the cast, i can throw 100yds with my first ever conventional reel. a more experienced friend can surpass my cast. looking forward to try it and catch first fish with it at the cannal. thanks

[wrikerjr]

The tail weight looks like a typical cone tail weight that Stan Kuzia use to make. Stan Kuzia and Stan Gibbs worked on that shape togther for plugs in the canal.

Is that where you got the inspiration for that design?

[Eric Roach]

Are those originals? They're beautiful.

[wrikerjr]

Eric,

I am not sure if you are asking me, but those are pictures from an article, they are not mine. I just thought the profile was very close to Kuzia's tails which i know Stan Gibb's developed for him (or at least provided the input).

Kindest,
Billy

[Eric Roach]

Originally Posted by wrikerjr

Eric,

I am not sure if you are asking me, but those are pictures from an article, they are not mine. I just thought the profile was very close to Kuzia's tails which i know Stan Gibb's developed for him (or at least provided the input).

Kindest,
Billy

Yes, I did mean the pictures you posted. The lines on those plugs are just beautiful.

[machinist]

thanks, tail weights are not cast lead they are machined 303 stainless steel to a cone shape. a canal fisherman who happens to have the same first name of stanley has taken me under his wing. he has shared alot of his plug making knowledge with me, and i am very grateful for it. we have discussed this design and with some tweeking think we have a keeper.

[wrikerjr]

Machinist,

If that person is Stan Kuzia you are one the right track as Stan is a legend in his own right. Best of Luck to you with the lures, looks great.

Kindest,
Billy

[Slipknot]

are you coming to plugfest? bring ya plugs if you do

[Slipknot]

Originally Posted by wrikerjr

The tail weight looks like a typical cone tail weight that Stan Kuzia use to make. Stan Kuzia and Stan Gibbs worked on that shape togther for plugs in the canal.

Is that where you got the inspiration for that design?

http://www.striped-bass.com/Stripert...stan-kuzia.jpg


NICE!

[machinist]

thanks

[ProfessorM]

I am making, or shoulds I say i have been making for at least 2 years, a mold for Bruce to pour those tail wgts, really Bruce I am making it. It will be done soon i hope.I have talked to Stan several times about that tail wgt over many years.
Yes machinist bring your stuff. I will bring some of my metal crap that i have built over the years. I think you will like them. Got lots of half done stuff too. I like to build in wood mostly because it isn't metal.. We can commeserate about the trade.
