Man Cave Photo's

[Rockfish9]

Some of these pictures were a little earlier this fall before i finaly got the sheet rock up.. it only took 3 years...

The lathe station and dust collector..

[Rockfish9]

Air purifier and sound sound deadening box around the air compressor, a computer fan hooked to the pressure switch comes on when the compressoer turns on and cools the box, two filter grates in the front provide a filted air flow to the compressor

[Rockfish9]

here are the drilling and cutting stations, drops from the dust collector are conmtrolled via blast gates...

[Rockfish9]

this si the sanding/grinding station, it hosts two belt/disc sanders, one 6"beltX 9" disc and one 1"beltX4" disc, one drill doctor, a variable speed grinder and a wet system for sharpening lathe tools, the table saw is stord under the end of the bench, 2" drops from the main dust collector go to the large sander and are controlled by a 2" ball valve

[Rockfish9]

the main work bench provides enough surface area to do the finish work, all lips and hardware are stored in small benchtop bins, replacement stock and "odd" supplies are in removable cases under the bench..
the spray booth is made from a pair of clear storage bins, the small one is a filter box, it contains fiberglass and charcoal media... keep in mind, because I use the air flow from my dust collector, only non flamable paints are sprayed into it... all other flamablees are sprayed outside...

[Rockfish9]

large and small stock racks are at either end of the shop..

[Rockfish9]

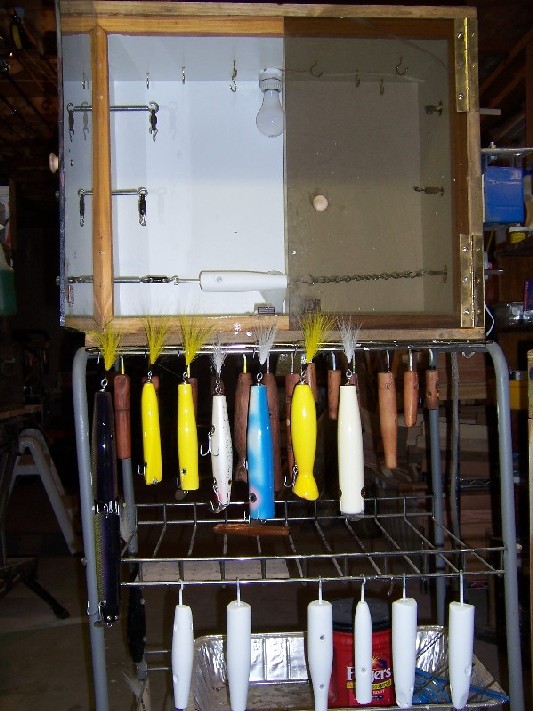

a few pictures of my spinner for drying epoxy
