pbadad · 12-20-2009, 07:26 AM

Quote:

Originally Posted by Tagger

that is very strange ... the placement of the weight below the thru wire ..

Good Morning all. I'm early. No paper yet. Got 8" snow w/ wind blown drifts up to 2" . God I hate snow. Gotta plow later. George, I've been studying the 2- A54B pixs. In the xray it looks like the wire hole is say 5/16" and the weight is on the bottom and the wire slides over the top. It doesn't seem like a double cut hole by the shadow marks. I finally got the blank template set up on the lathe. Using my plastic Atom version, I come up with 1 1/16" diameter, 5 3/8" length. The pix looks like 1 1/8" dia. like an Atom Jr w/ 5 5/8"length. Do you know what the swim characteristics were in this plug w/ just a recessed tailweight? I looks to cast better the an A-jr.

pbadad · 12-20-2009, 07:32 AM

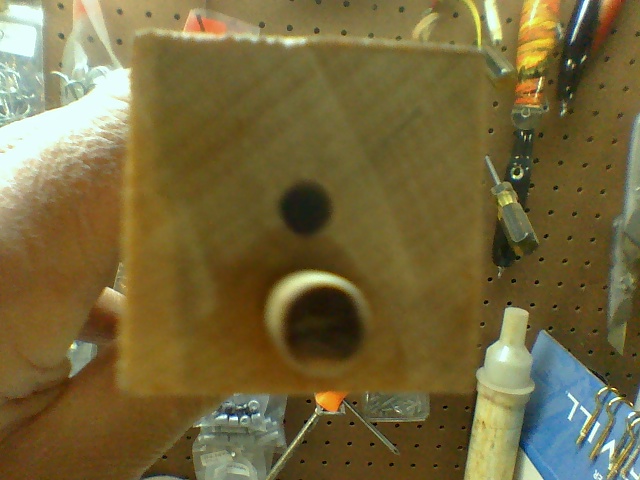

Prof M. here is the rear view of my weight placement of my belly weight Wadd. the hole 3/16" and below a 1/4" dowel plugging up the remaining hole. Put entire blank on lathe and spin away. I do go slower when I approach the dowel area.

BigFish · 12-20-2009, 07:45 AM

Morning.....need coffee! Back in a few!

ProfessorM · 12-20-2009, 10:55 AM

Quote:

Originally Posted by pbadad

Prof M. here is the rear view of my weight placement of my belly weight Wadd. the hole 3/16" and below a 1/4" dowel plugging up the remaining hole. Put entire blank on lathe and spin away. I do go slower when I approach the dowel area.

thanks for the photo. Neat idea.

pbadad · 12-25-2009, 08:31 PM

I went out the the harbor which was the only open water and tested a NCG setup on a 1201L and swam my version of the Atom 54B. I was impress all around. The rod casted great with the concept set up , 30,20,12,8,8,8,8,8,10tip. The Atom 54B was the other homerun. Swam down just under <1', wiggle ever so nicely. used 2/0 treble on the belly w/pennant on tail. Very nice S wiggle. Thanks for all your help George. By the way I put 11gram tailweight thru the wire. I cut a 7 gram in half and put the half and a whole one into a 17/64" hole up to the swivel hole shy of going inside the hook hole 1/16". Filled the void w/ wooden spacer. Got to get some of the roll plastic Prof. M has.

eastendlu · 12-26-2009, 12:19 PM

Numbskull i saw this on the other site and thought you would like this.

BigFish · 12-26-2009, 12:31 PM

See you guys in the am??

eastendlu · 12-26-2009, 12:40 PM

I hope i don't stay up to late plan on taking my wife to dinner and then to see Avatar as she did not want anything to do with seeing it when she first saw the previews and now she wants me to take her.I am glad because now i get to go to a new imax they just opened and heard good things about it.Not busting your chops Larry but i will give you my honest opinion after i see it.I also need to take pics of my paint shaker for you guys which works great btw.I had paint just sitting here for over a year (createx) all the paint on the bottom and the clear separeted on top like oil and vinegar took 30 sec to get it mixed.See you in the morning.

Backbeach Jake · 12-26-2009, 12:45 PM

Quote:

Originally Posted by BigFish

See you guys in the am??

I'll be here. This was a great idea,btw, Larry.

numbskull · 12-26-2009, 08:43 PM

Quote:

Originally Posted by eastendlu

Numbskull i saw this on the other site and thought you would like this.

Yes, I've known about that one for awhile. 10 1/2" and 4oz. Very doable, but I went with the BM/Pichney version last winter and barely fished them (beetch to carry). Found a picture of a Musso Eely this afternoon, however, a plug I never knew existed and one Back Beach asked me about just a week ago......2 hours later I think I've got something close. Don't have an original, but I've spent so much time copying his stuff I feel pretty confident I know how he would have gone about it. We'll see.

numbskull · 12-20-2009, 09:08 AM

Quote:

Originally Posted by pbadad

George, I've been studying the 2- A54B pixs. In the xray it looks like the wire hole is say 5/16" and the weight is on the bottom and the wire slides over the top. It doesn't seem like a double cut hole by the shadow marks. I finally got the blank template set up on the lathe. Using my plastic Atom version, I come up with 1 1/16" diameter, 5 3/8" length. The pix looks like 1 1/8" dia. like an Atom Jr w/ 5 5/8"length. Do you know what the swim characteristics were in this plug w/ just a recessed tailweight? I looks to cast better the an A-jr.

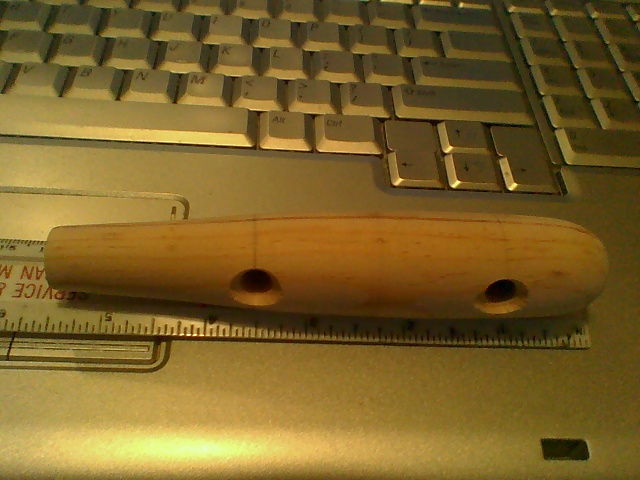

The small wooden atom jr I have is 5 1/2" long and 1.18" (1 3/16' I think) wide.

The larger unfinished wood atom jr body I have is 6 1/4" long and 1.20 thick. No hook holes. The tail is .53" wide, the tail taper begins about 2 1/2" from the end and is straight over the last 2 ". The diameter at 2" from the tail is 1.17" (approx 1 1/8). The nose is quite blunt, curving over about 3/8". The plug is very tight grained white cedar. Old growth I'll bet. Nothing like the white cedar we can get now.

The smaller version (whose xray I posted) is .68" at the tail, begins it's taper a 2 1/2 ", most of which occurs after 2", but instead of straight is a hair concave. It's hooks are 1" and 3 1/2" back. The daimeter at the second hook is 1.09" (about 1 1/6).

The line tie is 5/16" below the lip slot. The lip is similar to the one Salty sells.
