11-28-2004, 09:59 PM
|
#1
|
|
Dave's Guide Service
Join Date: Jul 2001
Location: Cape Cod
Posts: 7,557
|
i bend by hand and wrap the same
ie, srcewdriver and plyers
|
Pro Tool Club....
|
|
|
|
11-12-2004, 04:53 PM
|
#2
|
|
No Shorts On
Join Date: Sep 2000
Location: Bassachusetts
Posts: 1,109
|
I just got the metal one like Pogie as well. Only problem is that the instructions are in Japanese or Chinese
Thank goodness for pogies "how to" |
Bob Thomas
|
|
|
|
|
11-03-2004, 02:50 PM
|
#3
|
|
No Shorts On
Join Date: Sep 2000
Location: Bassachusetts
Posts: 1,109
|
Hey Kev!! That was me you passed the other day, in case you didn't realize it. You woke me up!!
I made one of Mr Pogies jigs there last year out of a piece of hardwood. Works great!
|
Bob Thomas
|
|
|
|
|
11-12-2004, 06:40 AM
|
#4
|
|
Registered User
Join Date: Apr 2001
Location: NJ
Posts: 90
|
CS... I make the loops teh old fashioned way by hand. Round nose pliers for smaller loops and a bolt in a vise for larger loops. I looked into get a fancy dancy bender and it wasn't worth teh cost for me.
Charlie
|
|
|
|
|
|
|
11-03-2004, 12:53 PM
|
#5
|
|
Keep The Change
Join Date: Oct 2000
Location: The Road to Serfdom
Posts: 3,275
|
Mr Pogie, as usual beautiful work and thanks for your help!!!
|
“It’s not up to the courts to invent new minorities that get special protections,” Antonin Scalia
|
|
|
|
|
11-02-2004, 08:38 PM
|
#6
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|

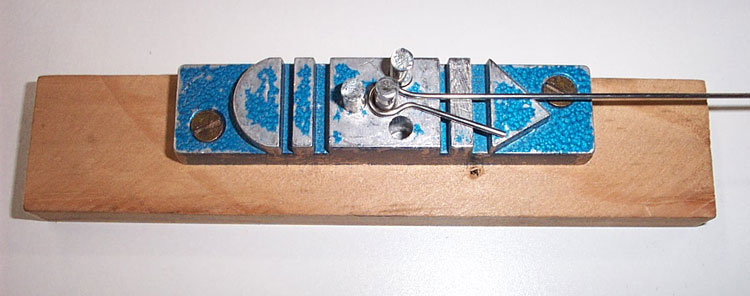

This is very simple to make and your loops will come out perfect every time and they can be made in about 20 -30 seconds each. Pic 01 shows the jig, all you need are the three holes that have the pins in them and one saw kerf with a handsaw. Take a piece of 3/4" hardwood and cut it so it's 1" wide. You can scew it to a workbench or clamp it in a vice which is what I do. The pins are pieces if 1/4" steel rod 1" long. The holes are two in a straight line and the end one at a 45 degree angle up. The holes have 1/16" between the edges so if you do the math, 5/16" between centers when you mark out the holes.Make the holes 1/2" deep. Next to the holes make a saw kerf that your wire will fit into so you can make the initial 90 degree bend nice and neat. Lay the wire the full width of the wood so you'll have an inch of wire before the bend. Now just follow the pictures, in the last picture I tighten up the loop by squeezing the ends together with a pair of pliers. ...mrpogie
|
|
|
|
|
|
|
01-18-2012, 01:00 PM
|
#7
|
|
Mojo
Join Date: May 2011
Location: Taunton
Posts: 339
|
Quote:
Originally Posted by mrpogie
This is very simple to make and your loops will come out perfect every time and they can be made in about 20 -30 seconds each. Pic 01 shows the jig, all you need are the three holes that have the pins in them and one saw kerf with a handsaw. Take a piece of 3/4" hardwood and cut it so it's 1" wide. You can scew it to a workbench or clamp it in a vice which is what I do. The pins are pieces if 1/4" steel rod 1" long. The holes are two in a straight line and the end one at a 45 degree angle up. The holes have 1/16" between the edges so if you do the math, 5/16" between centers when you mark out the holes.Make the holes 1/2" deep. Next to the holes make a saw kerf that your wire will fit into so you can make the initial 90 degree bend nice and neat. Lay the wire the full width of the wood so you'll have an inch of wire before the bend. Now just follow the pictures, in the last picture I tighten up the loop by squeezing the ends together with a pair of pliers. ...mrpogie
|
Does anyone know where I can get one of these wire benders? |
|
|
|
|
|
|
01-22-2012, 09:34 AM
|
#8
|
|
Registered User
Join Date: Feb 2011
Posts: 40
|
Quote:
Originally Posted by Mojo7
Does anyone know where I can get one of these wire benders?
|
Amazon. 10 bucks shipped to you. I'm trying to learn this jig as I sit here sipping coffee, lol.
Here is the one I bought. Duluth has the blue ones for a bit more. |
|
|
|
|
|
|
01-22-2012, 10:28 AM
|
#9
|
|
Retired Surfer
Join Date: Dec 2000
Location: Sunset Grill
Posts: 9,511
|
Another bender, oh dear, I have a headache
O.K., so this works for what we need on our through wires right!
|
Swimmer a.k.a. YO YO MA
Serial Mailbox Killer/Seal Fisherman
|
|
|
|
|
01-22-2012, 10:32 AM
|
#10
|
|
Registered User
Join Date: Feb 2011
Posts: 40
|
Quote:
Originally Posted by Swimmer
O.K., so this works for what we need on our through wires right!
|
It does for Mr.Pogie. I haven't tried his way yet. My way caused on side of the loop to deform though. Need to try his plier method out. |
|
|
|
|
|
|
01-30-2012, 01:29 PM
|
#11
|
|
Very Grumpy bay man
Join Date: Nov 2003
Location: Rhode Island
Posts: 10,825
|
Quote:
Originally Posted by Mokes
Amazon. 10 bucks shipped to you. I'm trying to learn this jig as I sit here sipping coffee, lol.
Here is the one I bought. Duluth has the blue ones for a bit more.
|
I have the blue one and I love it. |
No boat, back in the suds.
|
|
|
|
|
11-02-2004, 08:39 PM
|
#12
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|

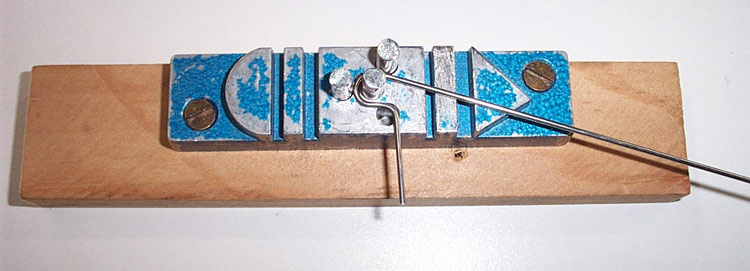

picture 2
|
|
|
|
|
|
|
11-02-2004, 08:40 PM
|
#13
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|

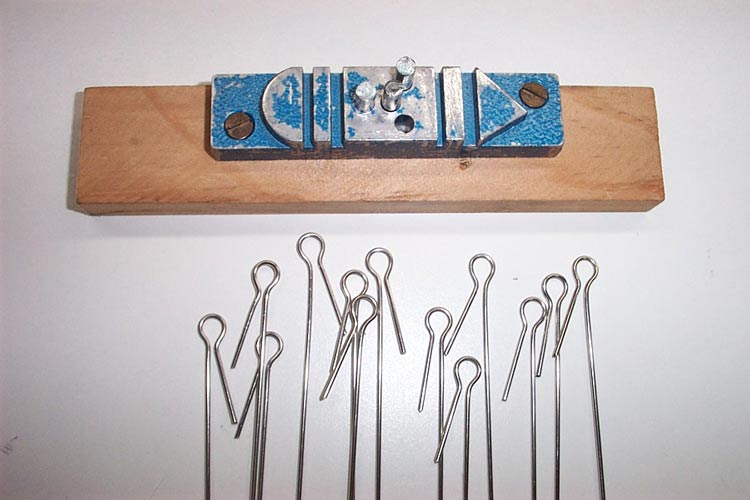

picture 3
|
|
|
|
|
|
|
11-02-2004, 08:41 PM
|
#14
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|

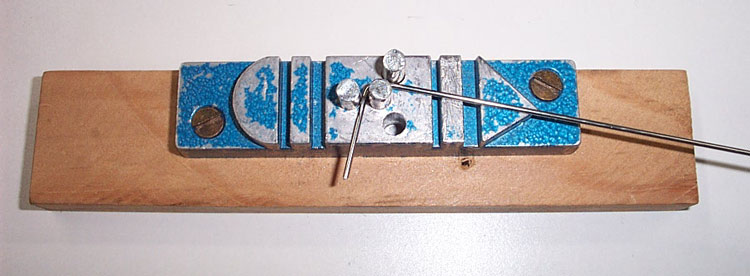

picture 4
|
|
|
|
|
|
|
11-02-2004, 08:41 PM
|
#15
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|

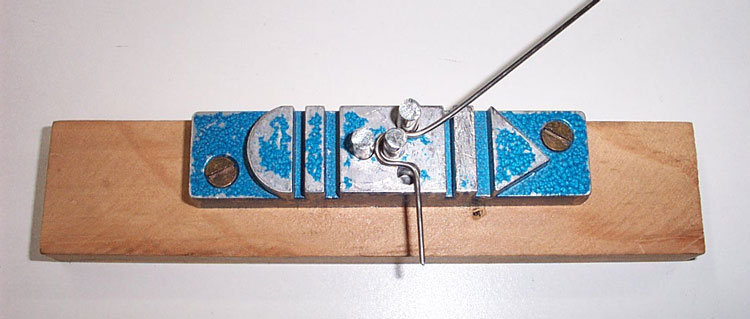

picture 5
|
|
|
|
|
|
|
11-02-2004, 08:42 PM
|
#16
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|

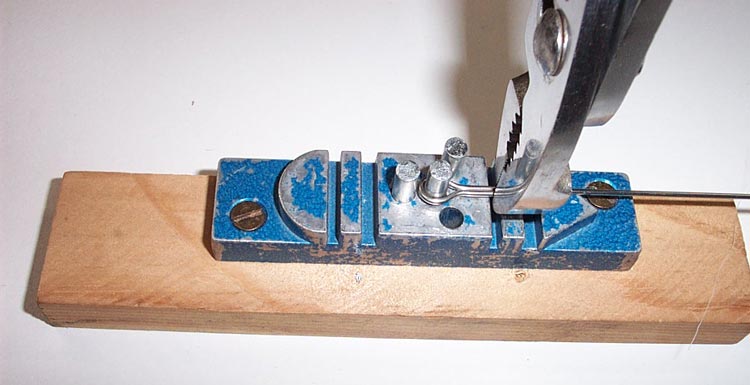

picture 6
|
|
|
|
|
|
|
11-02-2004, 08:42 PM
|
#17
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|
picture 7
|
|
|
|
|
|
|
11-02-2004, 08:43 PM
|
#18
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|
picture 8
|
|
|
|
|
|
|
11-02-2004, 09:07 PM
|
#19
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|
Striperknight, it's just a little wire bending jig used for shaping wire I bought about 20 years ago and never used until I started building plugs. The only part I have ever used are the pins and slot for bending the wire. Should be very easy to reproduce the essential parts on a piece of hardwood. ...mrpogie
|
|
|
|
|
|
|
11-04-2004, 09:15 AM
|
#20
|
|
Registered User
Join Date: Oct 2001
Posts: 129
|
I use 308L stainless welding wire. I get it at a local welding supply house. It comes in 3 ft pieces. ...mrpogie
|
|
|
|
|
|
|
11-12-2004, 03:56 PM
|
#21
|
|
Really Old & Really Grumpy
Join Date: Jun 2002
Location: not a clue
Posts: 4,860
|
plug god's will get u fa that one  |
BOAT fish do count.
|
|
|
|
|
11-12-2004, 12:54 PM
|
#22
|
|
Really Old & Really Grumpy
Join Date: Jun 2002
Location: not a clue
Posts: 4,860
|
yeh! i do the same thing...right now,,,but I'm one of those nut's that love's to make something reguardless of how much time it takes....when I could go out an buy one already made....I love a good challenge plus most of the stuff u buy today is cheap, meaning I'll always make it with better materials.
|
BOAT fish do count.
|
|
|
|
|
11-07-2004, 12:31 PM
|
#23
|
|
Really Old & Really Grumpy
Join Date: Jun 2002
Location: not a clue
Posts: 4,860
|
no help from the [com.] pro's  |
BOAT fish do count.
|
|
|
|
|
11-02-2004, 08:08 AM
|
#24
|
|
Really Old & Really Grumpy
Join Date: Jun 2002
Location: not a clue
Posts: 4,860
|
wire bender
for nose loops.....anyone have any thoughts or seen any that can be made..hand job type thingie..table top mounted...plans,pic's, web site etc.
|
BOAT fish do count.
|
|
|
|
|
01-18-2012, 04:07 PM
|
#25
|
|
Canceled
Join Date: Jun 2003
Location: vt
Posts: 13,427
|
|
Frasier: Niles, I’ve just had the most marvelous idea for a website! People will post their opinions, cheeky bon mots, and insights, and others will reply in kind!
Niles: You have met “people”, haven’t you?
Lets Go Darwin
|
|
|
|
|
01-23-2012, 06:10 PM
|
#26
|
|
Mojo
Join Date: May 2011
Location: Taunton
Posts: 339
|
Thanks guys
|
|
|
|
|
|
|
01-24-2012, 11:56 AM
|
#27
|
|
Plug Paladin
Join Date: Mar 2003
Location: Jackson, N.J.
Posts: 1,132
|
The jig works well. I've been using it since he posted it.
|
|
|
|
|
|
|
01-26-2012, 07:59 PM
|
#28
|
|
Uncle Remus
Join Date: Mar 2003
Location: Lakeville Ma.
Posts: 14,773
|
U need to go to a meat raffle
|
"A beach is a place where a man can feel he's the only soul in the world that's real"
|
|
|
|
|
02-02-2012, 11:40 AM
|
#29
|
|
Plug Paladin
Join Date: Mar 2003
Location: Jackson, N.J.
Posts: 1,132
|
Quote:
Originally Posted by ProfessorM
U need to go to a meat raffle
|
Don't get me started. lol  |
|
|
|
|
|
|
01-30-2012, 03:21 PM
|
#30
|
|
Retired Surfer
Join Date: Dec 2000
Location: Sunset Grill
Posts: 9,511
|
Where can we buy the wire?
|
Swimmer a.k.a. YO YO MA
Serial Mailbox Killer/Seal Fisherman
|
|
|
|
|
|
