Off-Center-Turned “Sammy” Spook
I always liked the shape of the Lucky Craft Sammy, which is a freshwater walk-the-dog lure. I wanted to make a larger version for saltwater use, and I wanted to make it reproducible for the Vega.
The Sammy isn’t cylindrical so I had to learn about off-center turning.

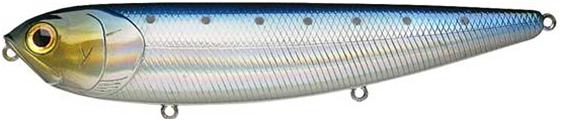

Below is a picture of a plastic Lucky Craft Sammy 128, which I based mine on.
|
|
|
|
|
|
01-02-2014, 10:25 PM
|
#2
|
|
Big E
Join Date: Dec 2009
Location: Seabrook, NH
Posts: 681
|
Planning - Dimensions
The Sammy’s belly, top and sides are all different shapes, so I needed three different Vega templates. To make sure they were proportionate, I overlayed pictures of the Sammy onto a Vega template grid to trace the arcs.
Last edited by Eric Roach; 01-02-2014 at 10:35 PM..
|
|
|
|
|
|
|
01-02-2014, 10:29 PM
|
#3
|
|
Big E
Join Date: Dec 2009
Location: Seabrook, NH
Posts: 681
|
Planning – Turning Points (Axes)
Now that the bottom, top and the sides of the lure were laid out, I had to figure out the head-on view, which was going to determine where the multiple turning axis (axes) needed to be. To do this I made a grid representing the end-stock of the wood blank. I placed a few turning points and drew arcs until I got the shape I wanted.
In the picture below, you can see the arcs created by each Vega template. The purple rectangle indicates the minimum dimensions of the wood blank (1.125” x 1.25”). I decided to use 1.5” x 1.5” x 9” stock (EWP).
Last edited by Eric Roach; 01-02-2014 at 10:47 PM..
|
|
|
|
|
|
|
01-02-2014, 10:30 PM
|
#4
|
|
Big E
Join Date: Dec 2009
Location: Seabrook, NH
Posts: 681
|
Preparing the Turning Stock
Accurately measuring and punching 4 turning points on end-stock can be dicey, so a centering template can be useful. You can make one out of 1.5” x 1.5” x .75” hard maple: - Carefully measure & awl the four points
- Drill them through with a 1/16” bit on the drill press
- Insert 1” nails through from the rear
- Place the centering template on a simple square jig and tap the ends of the turning stock into it.
Remove the template and you are left with 4 turning points accurately punched into the ends of the turning stock.
Last edited by Eric Roach; 01-02-2014 at 10:49 PM..
|
|
|
|
|
|
|
01-02-2014, 10:31 PM
|
#5
|
|
Big E
Join Date: Dec 2009
Location: Seabrook, NH
Posts: 681
|
Pre-Seating the Turning Stock
The biggest risk with off-center turning is breaking the piece. There’s a few ways to reduce risk of breakage, and the first is to “pre-seat” the piece on all 4 turning points before you start turning.
To do this, seat the piece in the lathe along all 4 axes -- compress it deep enough for the teeth on the head stock to bite into the end-grain. Now that the teeth marks are in the wood, you won’t have to compress the piece as much when you change turning axes.
|
|
|
|
|
|
|
01-02-2014, 10:33 PM
|
#6
|
|
Big E
Join Date: Dec 2009
Location: Seabrook, NH
Posts: 681
|
Turning
Nothing special to say about the actual turning, except be sure to cut shallower and make slower passes than you normally would – and be especially careful to not touch the squared ends of the blank with the cutter – this is when most breakages occur.
Did I mention to take shallow, slow passes?
Last edited by Eric Roach; 01-02-2014 at 10:39 PM..
|
|
|
|
|
|
|
