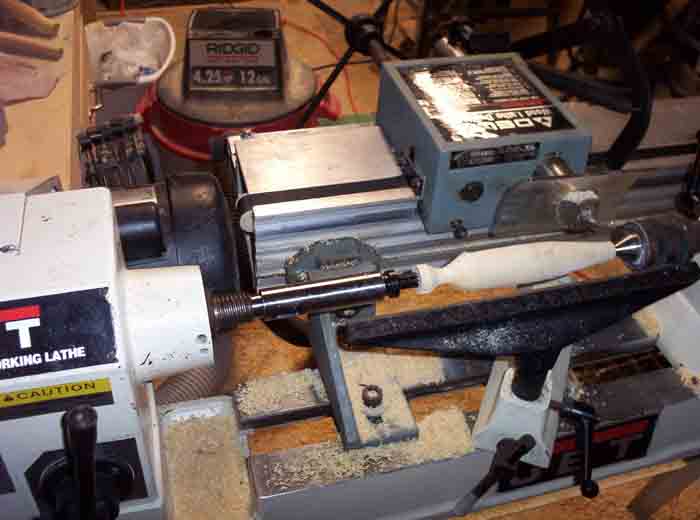

As some of you know I had 2 lathes and was going to combine the 2 moneywise to buy a new Delta. Well I came across a used Jet 12" lathe and went with that. Plus I got to keep some of the extra money in my pocket from the sale of other 2. First problem is that I wanted to mount the duplicator on the rear as the small Delta was. Well with the Jet lathe the motor sticks out beyond the headstock on the back side. So the guys at Woodcraft suggested a morse taper extension. Then they informed me that they don't carry them.  I went into W T Tools and they had what I was looking for  |
|
|
|
|
|
12-07-2004, 02:48 PM
|
#2
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|

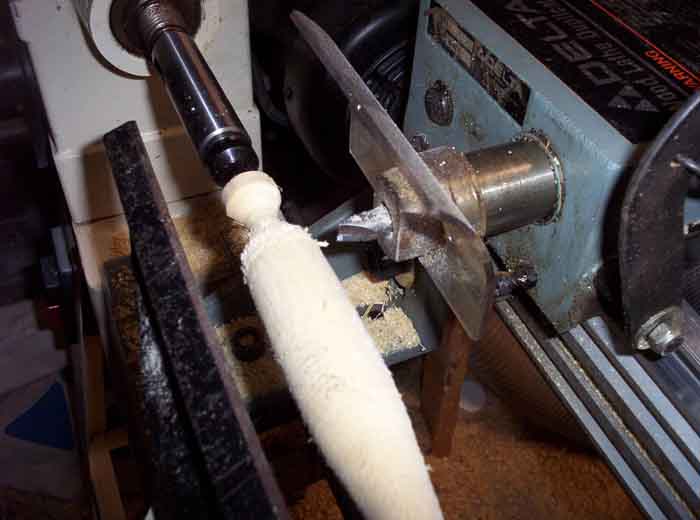

Next problem is that I wanted to use my templates and the delta was made to duplicate from original turnings . Or I would have to make all new templates. Not something I was remotely looking forward to. So I bought some aluminum stock and went to work. Here is what I came up with. I also kept the vega midi cutter and used it on the delta so that helps too. ( The delta comes with a HSS cutter and there is no comparison.)
|
|
|
|
|
|
|
12-07-2004, 02:50 PM
|
#3
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|
A few bolts some rivets ( since I don't mig weld), 4 thumb screws (to hold the template) and I'm ready to go.
|
|
|
|
|
|
|
12-07-2004, 03:18 PM
|
#4
|
|
Registered User
Join Date: Oct 2002
Posts: 3,595
|
What did you say
VB |
|
|
|
|
|
|
12-07-2004, 04:12 PM
|
#5
|
|
BigFish Bait Co.
Join Date: Apr 2003
Location: Hanover
Posts: 23,392
|
Necessity is the mother of invention!  |
Almost time to get our fish on!!!
|
|
|
|
|
12-07-2004, 05:22 PM
|
#6
|
|
Registered User
Join Date: Dec 2004
Location: Delaware Co., PA
Posts: 210
|
I have the same duplicator, Its pretty nice  Did you say you mounted it to the BACK of the lathe? If thats the case dont you have to reach over the turning stock to run the duplicator?
Id like a few close-ups (if possable) or that templare holder you made. Usually I turn one origional by eye and then when Im happy with it use it for the master. It would be nice to be able to use some plexiglass templates. |
|
|
|
|
|
|
12-07-2004, 05:27 PM
|
#7
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|
I just walk around to the other side |
|
|
|
|
|
|
12-07-2004, 06:45 PM
|
#8
|
|
Registered User
Join Date: Nov 2004
Location: plymouth,ma
Posts: 1,142
|
Dave,
For the past 2 days I've been trying to figure out a way to work both sides of my lathe so I could make a duplicator jig. The motor is on the back and in the way just as yours was. Looks like the extension takes care of that problem!
Can you tell me where W T Tools is located ?? |
|
|
|
|
|
|
12-07-2004, 06:57 PM
|
#9
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|
Rt 138 in Stoughton
|
|
|
|
|
|
|
12-07-2004, 08:39 PM
|
#10
|
|
Registered User
Join Date: Nov 2004
Location: plymouth,ma
Posts: 1,142
|
Thanks!
|
|
|
|
|
|
|
12-07-2004, 08:52 PM
|
#11
|
|
Hydro Orientated Lures
Join Date: Oct 2002
Location: Brockton,Ma
Posts: 8,484
|
hahahaha you spelled "injunewiti" wrong ... buy a #^&#^&#^&#^&janary
|
|
|
|
|
|
|
12-07-2004, 08:57 PM
|
#12
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|

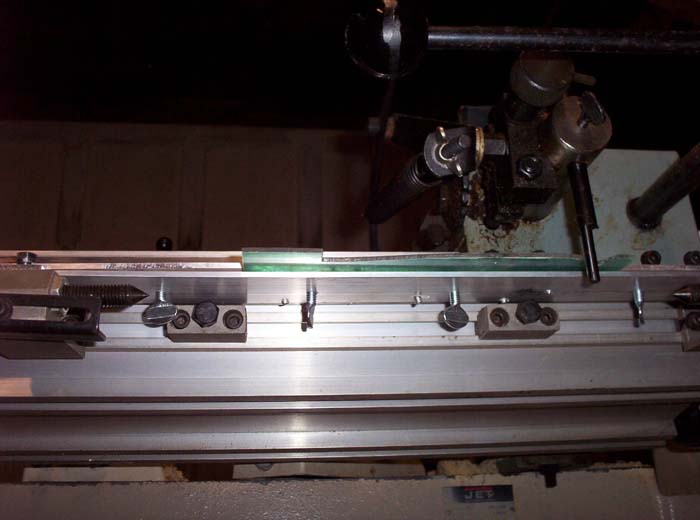

Here are a few close ups, bear with me.
|
|
|
|
|
|
|
12-07-2004, 08:58 PM
|
#13
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|

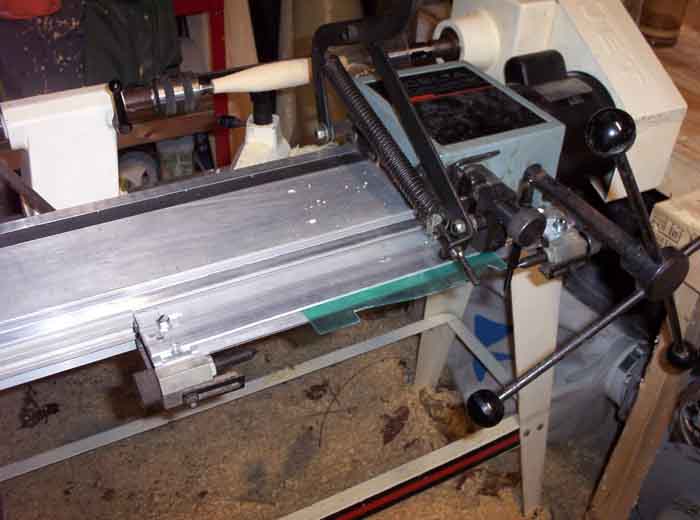

#2 another view
|
|
|
|
|
|
|
12-07-2004, 08:59 PM
|
#14
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|

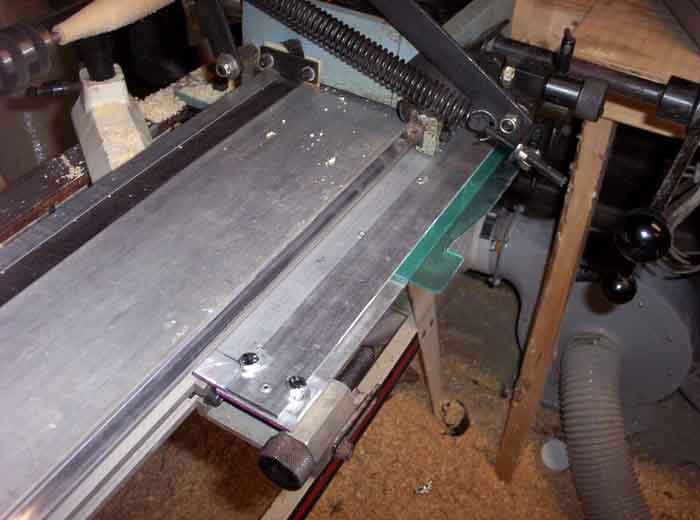

#3 another view
|
|
|
|
|
|
|
12-07-2004, 09:01 PM
|
#15
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|

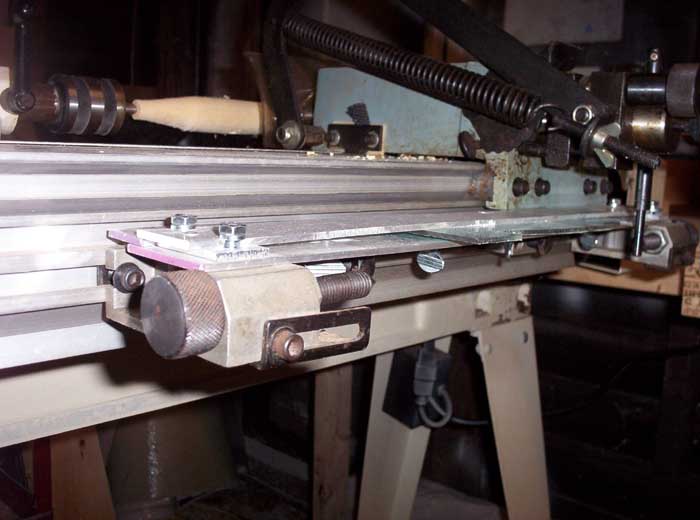

#4 is critical if you want to run the cutter down to end of plug blank (like for a danny) I cut half ot the bolt head to allow the carraige to run by
|
|
|
|
|
|
|
12-07-2004, 09:02 PM
|
#16
|
|
Registered User
Join Date: Jul 2002
Location: Maine
Posts: 4,547
|

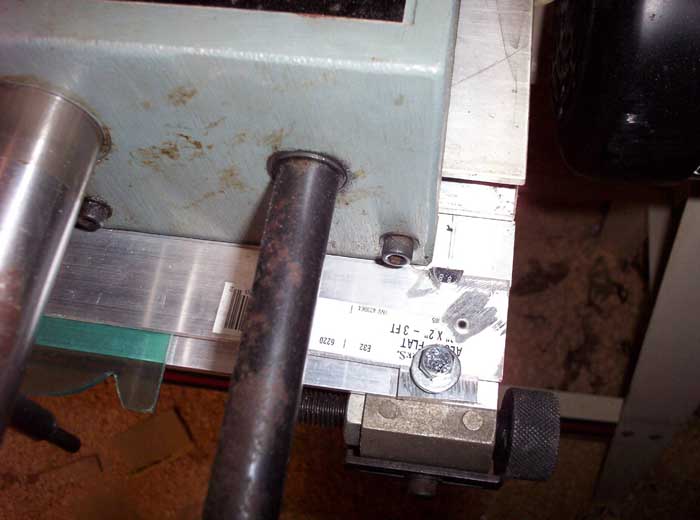

And lastly the cutter must be turned upside down at centerline or just a touch below
|
|
|
|
|
|
|
